Cylinder, Cross Cut Tungsten Carbide Burs FG RA | BURDENTAL

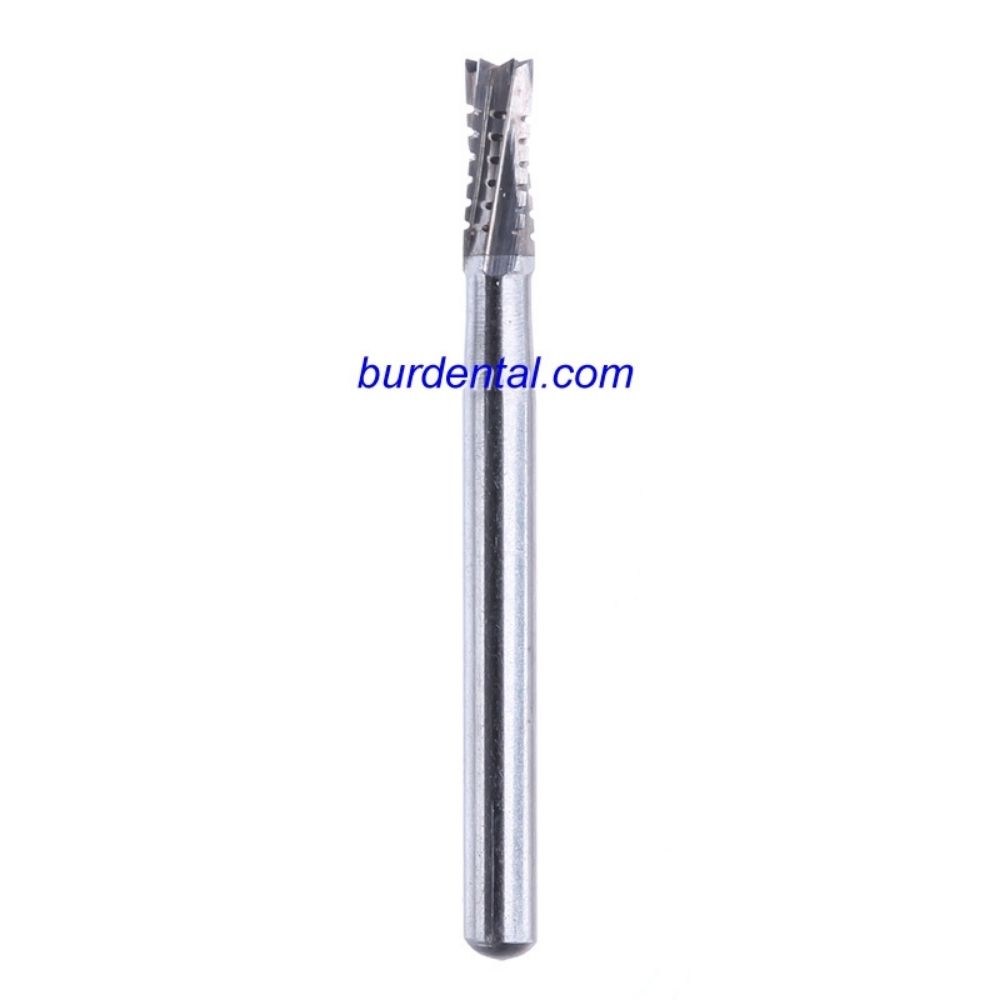

Cylinder, Cross Cut Tungsten Carbide Burs FG RA

Cylinder, Cross Cut Tungsten Carbide Burs FG RA

Iso Number 500.314.107.007.009
Head Diameter (1/10 Mm) 9
Cutting Length (mm) 4
Total Length(mm) 19
Shank Type 314-FG Standard
Shank Diameter(mm) 1.6
Head Shape Cylinder
Head Cut Cross Cut

Fields marked with * are required.

Name Sku Total Length(mm) Head Cut Iso Number Shank Type Applications Head Diameter (1/10 Mm) Shank Diameter(mm) Cutting Length (mm) Head Shape
FG556 TCBFG556XX 19 Cross Cut 500.314.107.007.009 314-FG Standard - 9 1.6 4 Cylinder
FG557 TCBFG557XX 19 Cross Cut 500.314.107.007.010 314-FG Standard - 10 1.6 4 Cylinder
FG558 TCBFG558XX 19 Cross Cut 500.314.107.007.012 314-FG Standard - 12 1.6 4 Cylinder
FG559 TCBFG559XX 19 Cross Cut 500.314.107.007.014 314-FG Standard - 14 1.6 4 Cylinder
FG560 TCBFG560XX 19 Cross Cut 500.314.107.007.016 314-FG Standard - 16 1.6 4 Cylinder
FG557L TCBFG557LX 21 Cross Cut 500.314.110.007.010 314-FG Standard - 10 1.6 6 Cylinder
FG558L TCBFG558LX 21 Cross Cut 500.314.110.007.012 314-FG Standard - 12 1.6 6 Cylinder
FGX557 TCBFGX557X 25 Cross Cut 500.316.107.007.010 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 10 1.6 4 Cylinder
FGX558 TCBFGX558X 25 Cross Cut 500.316.107.007.012 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 12 1.2 4 Cylinder
RA556 TCBRA556XX 22 Cross Cut 500.204.107.007.009 204-RA/CA Standard - 9 2.35 4 Cylinder
RA557 TCBRA557XX 22 Cross Cut 500.204.107.007.010 204-RA/CA Standard - 10 2.35 4 Cylinder
RA558 TCBRA558XX 22 Cross Cut 500.204.107.007.012 204-RA/CA Standard - 12 2.35 4 Cylinder
RA559 TCBRA559XX 22 Cross Cut 500.204.107.007.014 204-RA/CA Standard - 14 2.35 4 Cylinder
RA560 TCBRA560XX 22 Cross Cut 500.204.107.007.0116 204-RA/CA Standard - 16 2.35 4 Cylinder
RA561 TCBRA561XX 22 Cross Cut 500.204.107.007.018 204-RA/CA Standard - 18 2.35 4 Cylinder
RA562 TCBRA562XX 22 Cross Cut 500.204.107.007.021 204-RA/CA Standard - 21 2.35 4 Cylinder
RA563 TCBRA563XX 22 Cross Cut 500.204.107.007.023 204-RA/CA Standard - 23 2.35 4 Cylinder
FG556L TCBFG556LX 21 Cross Cut 500.314.110.007.009 314-FG Standard - 9 1.6 6 Cylinder
FG559L TCBFG559LX 21 Cross Cut 500.314.110.007.014 314-FG Standard - 14 1.6 6 Cylinder
FGX559 TCBFGX559X 25 Cross Cut 500.316.107.007.014 316-FG Long - 14 1.6 4 Cylinder
FGS556 TCBFGS556X 17 Cross Cut 500.313.107.007.009 313-FG Short - 9 1.6 4 Cylinder
FGS557 TCBFGS557X 17 Cross Cut 500.313.107.007.010 313-FG Short - 10 1.6 4 Cylinder
RAX557 TCBRAX557X 26 Cross Cut 500.205.107.007.010 204-RA/CA Standard - 10 2.35 4 Cylinder
FG555 TCBFG555XX 19mm Cross cut 500.314.107.007.009 FG standard - 8 1.6mm 4mm Cylinder

Product Description:

B&D Technologies FG Dental Carbide Burs Drills for high-speed handpiece

  • Shaping fissure on a variety of materials. Used on gold, composite veneers or ceramics prior to final firing, they always display convincing cutting proper and an impressively long service life.
  • Prophylaxis and oral surgery; Preparation of cavities; removal of old fillings; treatment of filings; preparation of crowns.
  • Also used as engraving bits, carving bits.
  • Fit to high speed FG dental handpiece.

Dental Carbide Bur Specification:

  • Standard FG burs (ISO314, diameter 1.6mm / total length 19mm).
  • FG short shank burs (ISO313, diameter 1.6mm / total length 16mm)long shank burs (ISO 316, diameter 1.6mm / total length 25mm).
  • Standard RA / CA shank burs (ISO 204, right angle / contra angle, diameter 2.35mm/total length 22mm).
