Shank Diameter(mm) | 2.35 |
Grit | Coarse |
Usage | Ceramics |
Color | White |
Head Shape | Flame |
Head Diameter (mm) | 5 |
Cutting Length (mm) | 10 |
Shank Type | 314-FG Standard |
Name | Sku | Cutting Length (mm) | Color | Shank Type | Shank Diameter(mm) | Head Shape | Grit | Head Diameter (mm) | Usage |
---|---|---|---|---|---|---|---|---|---|
CF103C | SPCF103CXX | 10 | White | 314-FG Standard | 2.35 | Flame | Coarse | 5 | Ceramics |
CF101M | SPCF101MXX | 7 | Pink | 314-FG Standard | 2.35 | Flame | Medium | 3 | Ceramics |
CF103M | SPCF103MXX | 10 | Pink | 314-FG Standard | 2.35 | Flame | Medium | 5 | Ceramics |
CF101F | SPCF101FXX | 7 | Blue | 314-FG Standard | 2.35 | Flame | Fine | 3 | Ceramics, Composite |
CF103F | SPCF103FXX | 10 | Blue | 314-FG Standard | 2.35 | Flame | Fine | 5 | Ceramics, Composite |
AR101C | SPAR101CXX | 7 | Black | 204-RA/CA Standard | 2.35 | Flame | Coarse | 3 | Metal, Alloy |
AR103C | SPAR103CXX | 10 | Black | 204-RA/CA Standard | 2.35 | Flame | Coarse | 5 | Metal, Alloy |
AR101M | SPAR101MXX | 7 | Brown | 204-RA/CA Standard | 2.35 | Flame | Medium | 3 | Metal, Alloy |
AR103M | SPAR103MXX | 10 | Brown | 204-RA/CA Standard | 2.35 | Flame | Medium | 5 | Metal, Alloy |
AR101F | SPAR101FXX | 7 | Light Grey | 204-RA/CA Standard | 2.35 | Flame | Fine | 3 | Metal, Alloy, Composite |
AR103F | SPAR103FXX | 10 | Light Grey | 204-RA/CA Standard | 2.35 | Flame | Fine | 5 | Metal, Alloy, Composite |
AF101C | SPAF101CXX | 7 | Black | 314-FG Standard | 2.35 | Flame | Coarse | 3 | Metal, Alloy |
AF103C | SPAF103CXX | 10 | Black | 314-FG Standard | 2.35 | Flame | Coarse | 5 | Metal, Alloy |
CF101C | SPCF101CXX | 7 | White | 204-RA/CA Standard | 2.35 | Flame | Coarse | 3 | Ceramics |
CR101C | SPCR101CXX | - | White | 204-RA/CA Standard | 2.35 | Flame | Coarse | 3 | Ceramics |
CR103C | SPCR103CXX | 10 | White | 204-RA/CA Standard | 2.35 | Flame | Coarse | 5 | Ceramics |
CR101M | SPCR101MXX | 7 | Pink | 204-RA/CA Standard | 2.35 | Flame | Medium | 3 | Ceramics |
CR103M | SPCR103MXX | 10 | White | 204-RA/CA Standard | 2.35 | Flame | Medium | 5 | Ceramics |
CR101F | SPCR101FXX | 7 | Blue | 204-RA/CA Standard | 2.35 | Flame | Fine | 3 | Ceramics, Composite |
CR103F | SPCR103FXX | 10 | Blue | 204-RA/CA Standard | 2.35 | Flame | Fine | 5 | Ceramics, Composite |
AF101M | SPAF101MXX | 7 | Brown | 314-FG Standard | 2.35 | Flame | Medium | 3 | Metal, Alloy |
AF103M | SPAF103MXX | 10 | Brown | 314-FG Standard | 2.35 | Flame | Medium | 5 | Metal, Alloy |
AF101F | SPAF101FXX | 7 | Light Grey | 314-FG Standard | 2.35 | Flame | Fine | 3 | Metal, Alloy, Composite |
AF103F | SPAF103FXX | 10 | Light Grey | 314-FG Standard | 2.35 | Flame | Fine | 5 | Metal, Alloy, Composite |
RF101F | PPRF101FXX | 7 | Yellow | 314-FG Standard | 2.35 | Flame | Fine | 3 | Composite |
RF103F | PPRF103FXX | 10 | Yellow | 314-FG Standard | 2.35 | Flame | Fine | 5 | Composite |
RR101F | PPRR101FXX | 7 | Yellow | 204-RA/CA Standard | 2.35 | Flame | Fine | 3 | Composite |
RR103F | PPRR103FXX | 10 | Yellow | 204-RA/CA Standard | 2.35 | Flame | Fine | 5 | Composite |

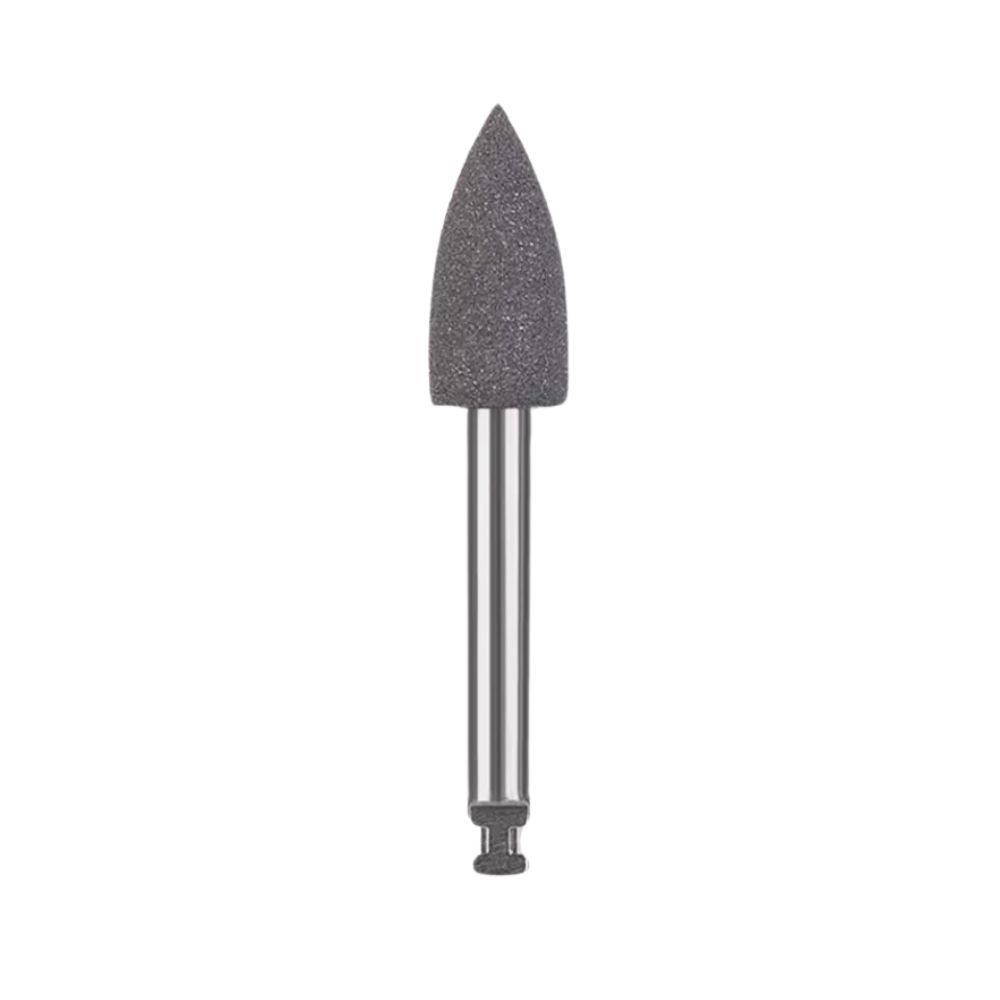

The Flame Silicone Polisher is an advanced polisher designed for ultra-fine detailing. Made from high-rebound silicone rubber and infused with premium abrasive particles (aluminum oxide or diamond particles), the polisher easily polishes ceramics, resins and metal alloys. Color-coded for quick identification and stable, chatter-free performance, our silicone polishers are ideal for a variety of applications including dental restorations, gemstone finishing and precision model processing.
Anatomical “Flame” Head
Tapers to a fine point for effortless access to narrow grooves, intricate curves, and undercuts.
High-Efficiency Abrasive Core
Embedded with durable aluminum oxide or diamond grit for aggressive stock removal when you need it—and a flawless finish when you don’t.
Low-Heat Operation
Engineered to dissipate frictional heat, protecting sensitive materials from discoloration or warping.
Seven-Color Grit System
From coarse through super-fine, each hue corresponds to a specific grit level—streamlining your workflow.
Dual-Shank Compatibility
Available in FG (1.6 mm) for high-speed handpieces and RA (2.35 mm) for low-speed contra angles.
Use the first table to confirm tool compatibility and operating parameters, then select the exact grit and part number from the second table to match your material and polishing stage.
Attribute | Details |
---|---|
Material & Construction | High-resilience silicone rubber infused with premium aluminum-oxide or diamond abrasive particles for aggressive stock removal and ultra-fine finishing. |
Tip Geometry | Flame-shaped design for pinpoint access to grooves, undercuts, and complex contours. |
Shank Compatibility | FG (1.6 mm) for high-speed handpieces, RA (2.35 mm) for low-speed contra-angles (no adapters needed). |
Recommended Speed | optimal: 5 000–12 000 RPM, balances cutting power with heat control. |
Packaging Options | Single unit • Pack of 10 • Custom OEM kits available for trials, labs, or distributor assortments. |
Color | Part Number | Head diameter | Abrasive | Primary Use |
---|---|---|---|---|
White | Cf101C | 3 mm | Silicone + Al | Initial ceramic stock removal |
Cf103C | 5 mm | Silicone + Al | Bulk ceramic shaping | |
Pink | Cf101M | 3 mm | Silicone + Al | Intermediate ceramic smoothing |
Cf103M | 5 mm | Silicone + Al | Mid-stage ceramic refinement | |
Blue | Cf101F | 3 mm | Silicone + Al | Pre-polish of ceramics & resin |
Cf103F | 5 mm | Silicone + Al | Fine pre-polish on larger surfaces | |
Black | Af101C | 3 mm | Silicone + Diamond | Aggressive metal & alloy removal |
Af103C | 5 mm | Silicone + Diamond | Bulk metal shaping | |
Brown | Af101M | 3 mm | Silicone + Diamond | Medium-level metal refinement |
Af103M | 5 mm | Silicone + Diamond | Surface smoothing of alloys | |
Gray | Af101F | 3 mm | Silicone + Diamond | Fine alloy & resin polishing |
Af103F | 5 mm | Silicone + Diamond | Precision final polish | |
Yellow | Rf101F | 3 mm | Silicone + ultra-fine Al | Mirror finish on resin & metal |
Rf103F | 5 mm | Silicone + ultra-fine Al | Ultimate mirror polish on larger areas |
This reference table simplifies tool selection, allowing you to select and match your materials, equipment and polishing stages at a glance for perfect and efficient results.
Dental Restorations
Smooth and high-gloss polish for crowns, bridges, veneers, and denture repairs.
Jewelry Finishing
Make precious metals (gold, silver, platinum) shine and bring gemstones to life without severe scratching and loss.
Precision Modeling & Prototyping
Refine resin, metal or composite parts with extreme precision.
Educational & Training Labs
Perfect for dental schools and jewelry workshops practicing multi-step polishing techniques.
Sequence by Grit
Start coarse (white/black) → mid (pink/brown) → fine (blue/gray) → super-fine (yellow) for a mirror finish.
Speed Control
Use low to mid-range speeds (5,000–12,000 RPM) to balance cutting power and temperature.
Wet or Dry
Dry polishing for convenience; wet polishing to reduce dust and heat.
Maintenance
After use, gently brush off residue or wipe with alcohol swab. Store in a dry, cool place.
Factory-Direct Supply
From raw materials to finished products, full control, no middlemen, no surprises, more favorable prices.
Visual Workflow
Our vivid seven-color system speeds up selection and reduces errors.
Global Certifications
CE 0197 and ISO 13485 certified for peace of mind.
Universal Shank Options
FG + RA compatibility covers virtually all dental and lab handpieces.
Proven Market Leadership
Used by dental practices, top jewelry studios and precision engineers worldwide, with ongoing collaborations with customers in over fifty countries around the world
Q1: Which handpieces do these polishers fit?
A: Available in FG (1.6 mm) and RA (2.35 mm) to fit high-speed and low-speed dental/lab handpieces out of the box.
Q2: How do I choose the right grit?
A: Match the grit to your workflow stage—coarse for stock removal, medium for shaping, fine and super-fine for final luster.
Q3: Do you offer private-label or custom packaging?
A: Absolutely—our OEM/ODM service will customize branding, packaging, and labeling to your specifications.
Q4: Is there a minimum order quantity?
A: No strict MOQ—order as few or as many polishers as you need, and scale up at your own pace.
