​Flat End Taper, Cross Cut Tungsten Carbide Burs FG RA | Tungsten Carbide Burs | Products

​Flat End Taper, Cross Cut Tungsten Carbide Burs FG RA

​Flat End Taper, Cross Cut Tungsten Carbide Burs FG RA

Iso Number 500.314.168.007.008
Head Diameter (1/10 Mm) 8
Cutting Length (mm) 4
Total Length(mm) 19
Shank Type 314-FG Standard
Shank Diameter(mm) 1.6
Head Shape Taper
Head Cut Cross Cut

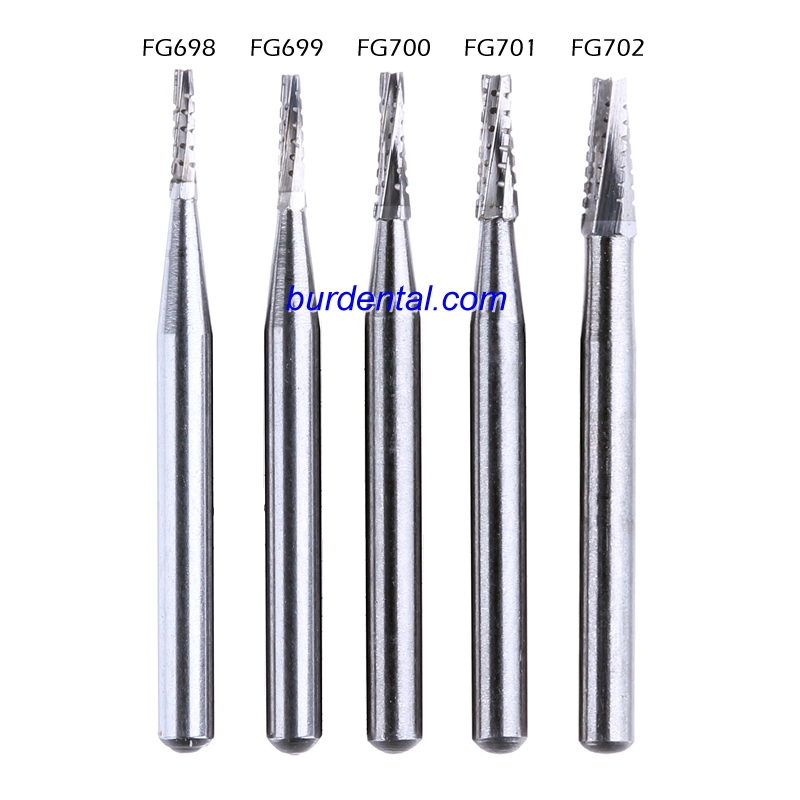

Name Sku Head Cut Iso Number Shank Type Applications Head Diameter (1/10 Mm) Shank Diameter(mm) Cutting Length (mm) Head Shape Total Length(mm)
FG698 TCBFG698XX Cross Cut 500.314.168.007.008 314-FG Standard - 8 1.6 4 Taper 19
FG699 TCBFG699XX Cross Cut 500.314.168.007.009 314-FG Standard - 9 1.6 4 Taper 19
FG700 TCBFG700XX Cross Cut 500.314.168.007.010 314-FG Standard - 10 1.6 4 Taper 19
FG701 TCBFG701XX Cross Cut 500.314.168.007.012 314-FG Standard - 12 1.6 4 Taper 19
FG702 TCBFG702XX Cross Cut 500.314.168.007.016 314-FG Standard - 16 1.6 4 Taper 19
FG700L TCBFG700LX Cross Cut 500.314.171.007.010 314-FG Standard - 10 1.6 6 Taper 21
FG701L TCBFG701LX Cross Cut 500.314.171.007.012 314-FG Standard - 12 1.6 6 Taper 21
FGX700 TCBFGX700X Cross Cut 500.316.168.007.010 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 10 1.6 4 Flat End Taper 25
FGX701 TCBFGX701X Cross Cut 500.316.168.007.012 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 12 1.6 4 Flat End Taper 25
FGX702 TCBFGX702X Cross Cut 500.316.168.007.016 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 16 1.6 4 - 25
RA699 TCBRA699XX Cross Cut 500.204.168.007.009 204-RA/CA Standard - 9 2.35 4 Taper 22
RA700 TCBRA700XX Cross Cut 500.204.168.007.010 204-RA/CA Standard - 10 2.35 4 Taper 22
RA701 TCBRA701XX Cross Cut 500.204.168.007.012 204-RA/CA Standard - 12 2.35 4 Taper 22
RA702 TCBRA702XX Cross Cut 500.204.168.007.016 204-RA/CA Standard - 16 2.35 4 Taper 22
RA703 TCBRA703XX Cross Cut 500.204.168.007.021 204-RA/CA Standard - 21 2.35 4 Taper 22
RA704 TCBRA704XX Cross Cut 500.204.168.007.023 204-RA/CA Standard - 23 2.35 4 Taper 22
FG702L TCBFG702LX Cross Cut 500.314.171.007.016 314-FG Standard - 16 1.6 6 Taper 21
FG699L TCBFG699LX Cross Cut 500.314.171.007.009 314-FG Standard - 9 1.6 6 Taper 21
RAX701 TCBRAX701X Cross Cut 500.205.168.007.012 204-RA/CA Standard - 12 2.35 4 Taper 26

Product Description:

B&D Technologies FG Dental Carbide Burs Drills for high-speed handpiece

  • Shaping fissure on a variety of materials. Used on gold, composite veneers or ceramics prior to final firing, they always display convincing cutting proper and an impressively long service life.
  • Prophylaxis and oral surgery; Preparation of cavities; removal of old fillings; treatment of filings; preparation of crowns.
  • Also used as engraving bits, carving bits.
  • Fit to high speed FG dental handpiece.

Dental Carbide Bur Specification:

  • Standard FG burs (ISO314, diameter 1.6mm / total length 19mm).
  • FG short shank burs (ISO313, diameter 1.6mm / total length 16mm)long shank burs (ISO 316, diameter 1.6mm / total length 25mm).
  • Standard RA / CA shank burs (ISO 204, right angle / contra angle, diameter 2.35mm/total length 22mm).
