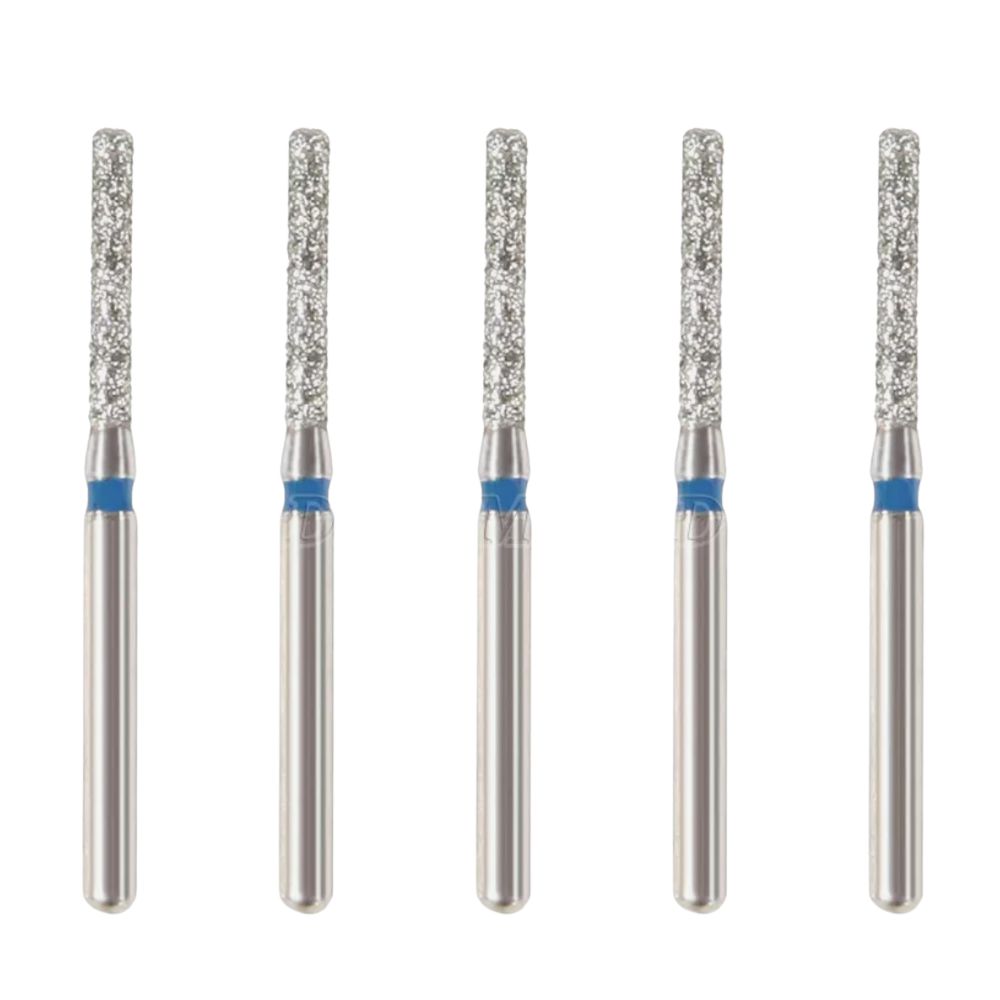

109-016M Flat End Cylinder Diamond Bur FG Medium grit

109-016M Flat End Cylinder Diamond Bur FG Medium grit

The 109-016M is a diamond bur made with natural diamond, stainless steel, configured with a flat end cylinder head, medium grit, FG standard shank, 1.6 mm head diameter. It is designed for cavity preparation and restorative adjustment.

Key Features

• Flat End Cylinder head profile for procedures that require this working shape.
• Medium grit for the corresponding adjustment, finishing or polishing step.
• FG standard shank with 1.6 mm diameter for compatible handpieces.
• 1.6 mm head diameter to match the selected product code.

Specifications

• Product code: 109-016M
• Head shape: Flat End Cylinder
• Head diameter: 1.6 mm
• Grit: medium grit
• Shank type: FG standard
• Shank diameter: 1.6 mm
• ISO code: 806.314.109.524.016
• Size: Head diameter 1.6 mm; cutting length 4 mm; total length 19 mm; shank diameter 1.6 mm

Applications

• Cavity preparation and restorative adjustment.
• Use where a flat end cylinder working shape matches the clinical or laboratory requirement.
• Compatible with handpieces or holders that accept FG standard instruments.
