277-016F Egg Diamond Bur FG 514 Grit

277-016F Egg Diamond Bur FG 514 Grit

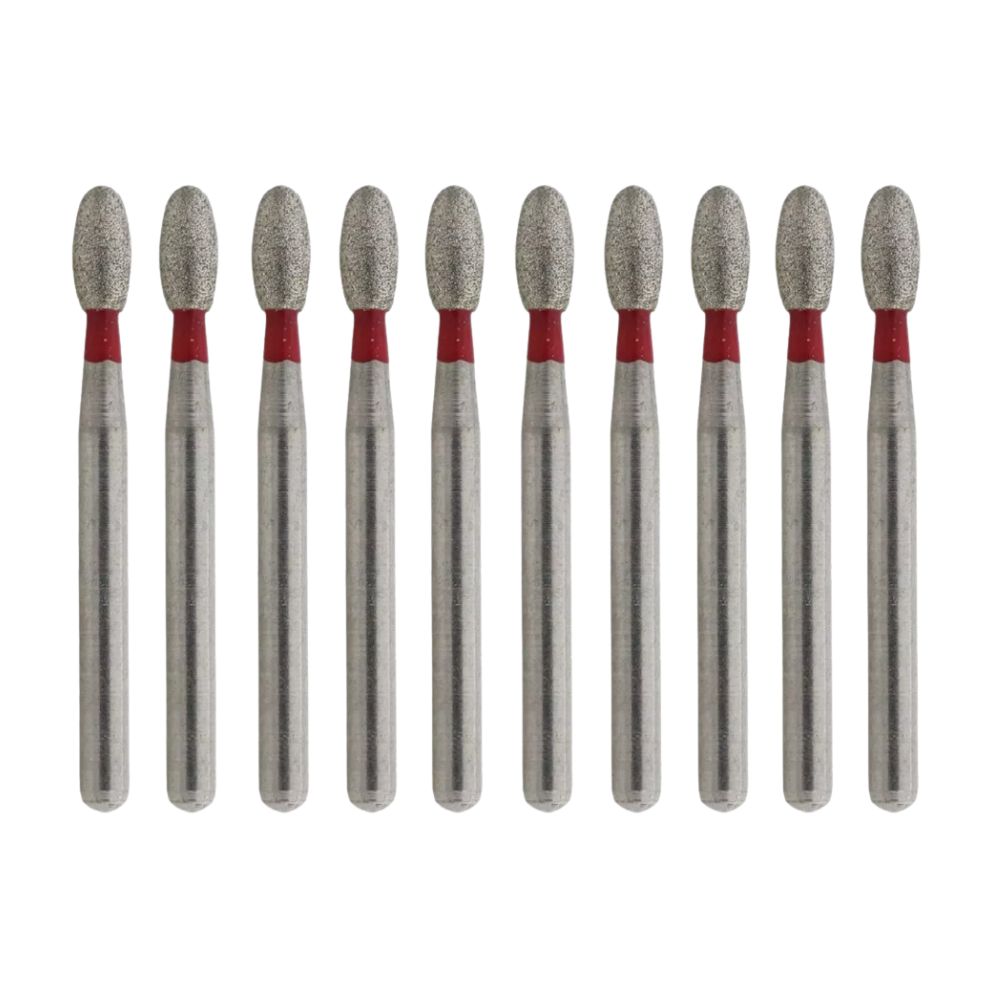

The 277-016F is a diamond bur made with natural diamond, stainless steel, configured with a egg head, 514 grit, FG standard shank, 1.6 mm head diameter. It is designed for cavity preparation and restorative adjustment.

Key Features

• Egg head profile for procedures that require this working shape.
• 514 Grit for the corresponding adjustment, finishing or polishing step.
• FG standard shank with 1.6 mm diameter for compatible handpieces.
• 1.6 mm head diameter to match the selected product code.

Specifications

• Product code: 277-016F
• Head shape: Egg
• Head diameter: 1.6 mm
• Grit: 514 grit
• Shank type: FG standard
• Shank diameter: 1.6 mm

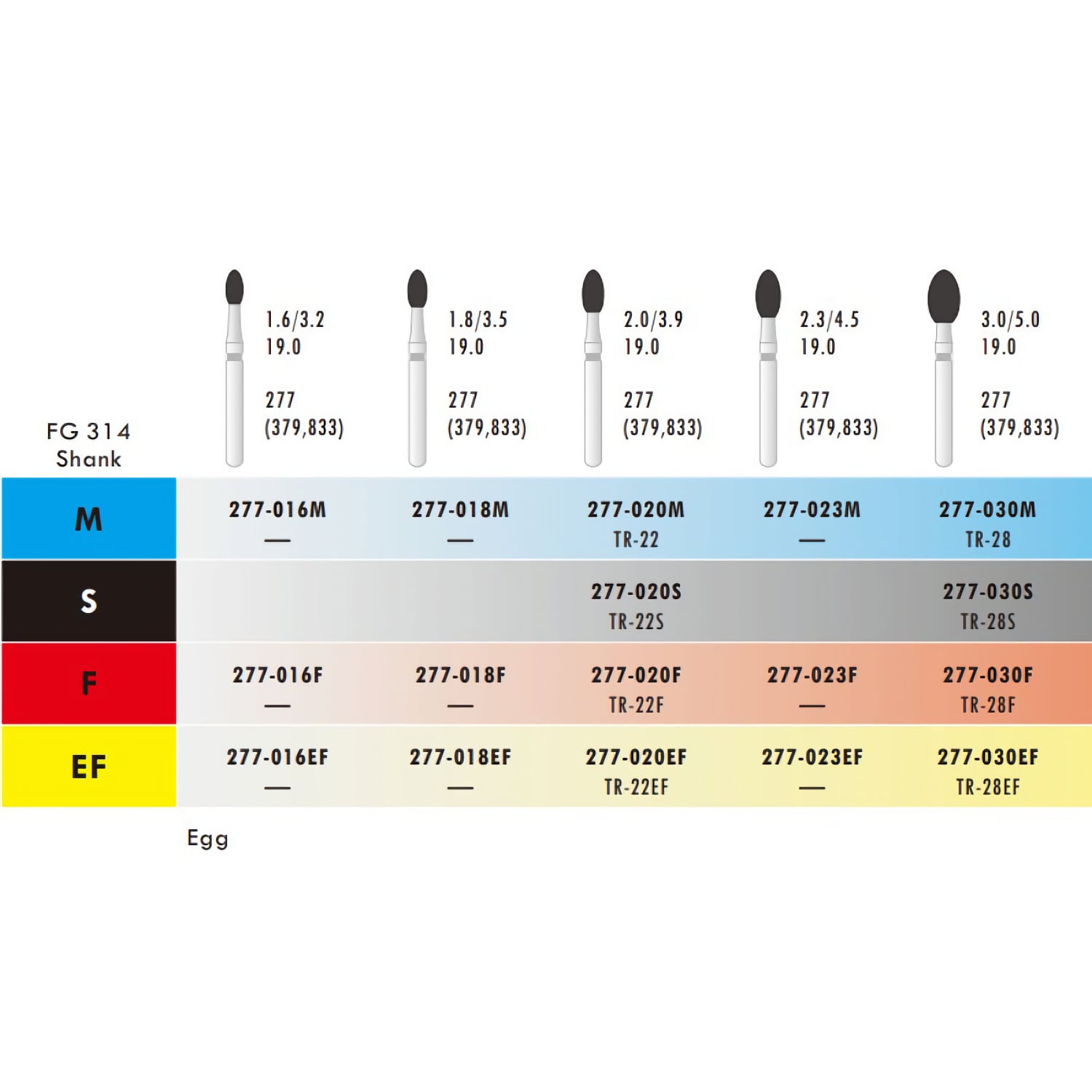

• ISO code: 806.314.277.514.016
• Size: Head diameter 1.6 mm; cutting length 3.2 mm; total length 19 mm; shank diameter 1.6 mm

Applications

• Cavity preparation and restorative adjustment.
• Use where a egg working shape matches the clinical or laboratory requirement.
• Compatible with handpieces or holders that accept FG standard instruments.
