Z198-016M Round-End Cone Zirconia Diamond Bur FG Medium grit

Z198-016M Round-End Cone Zirconia Diamond Bur FG Medium grit

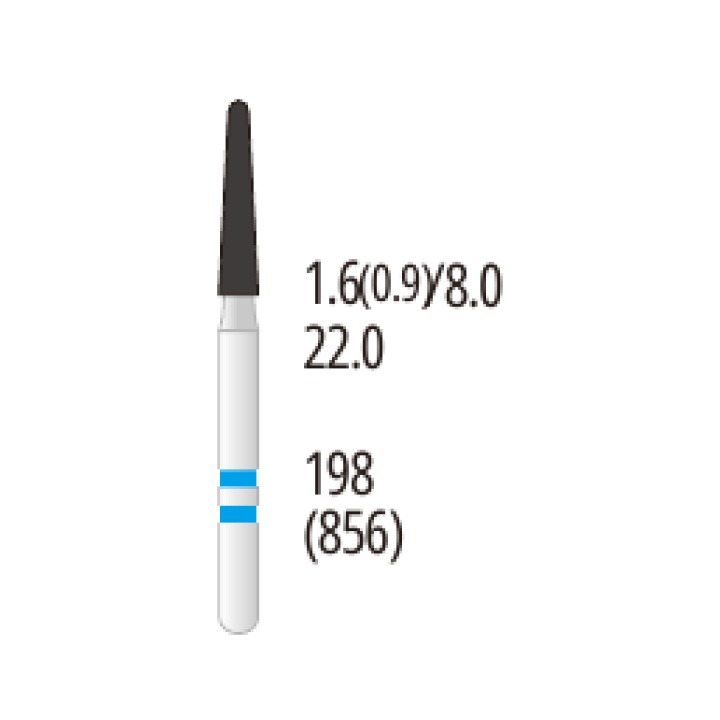

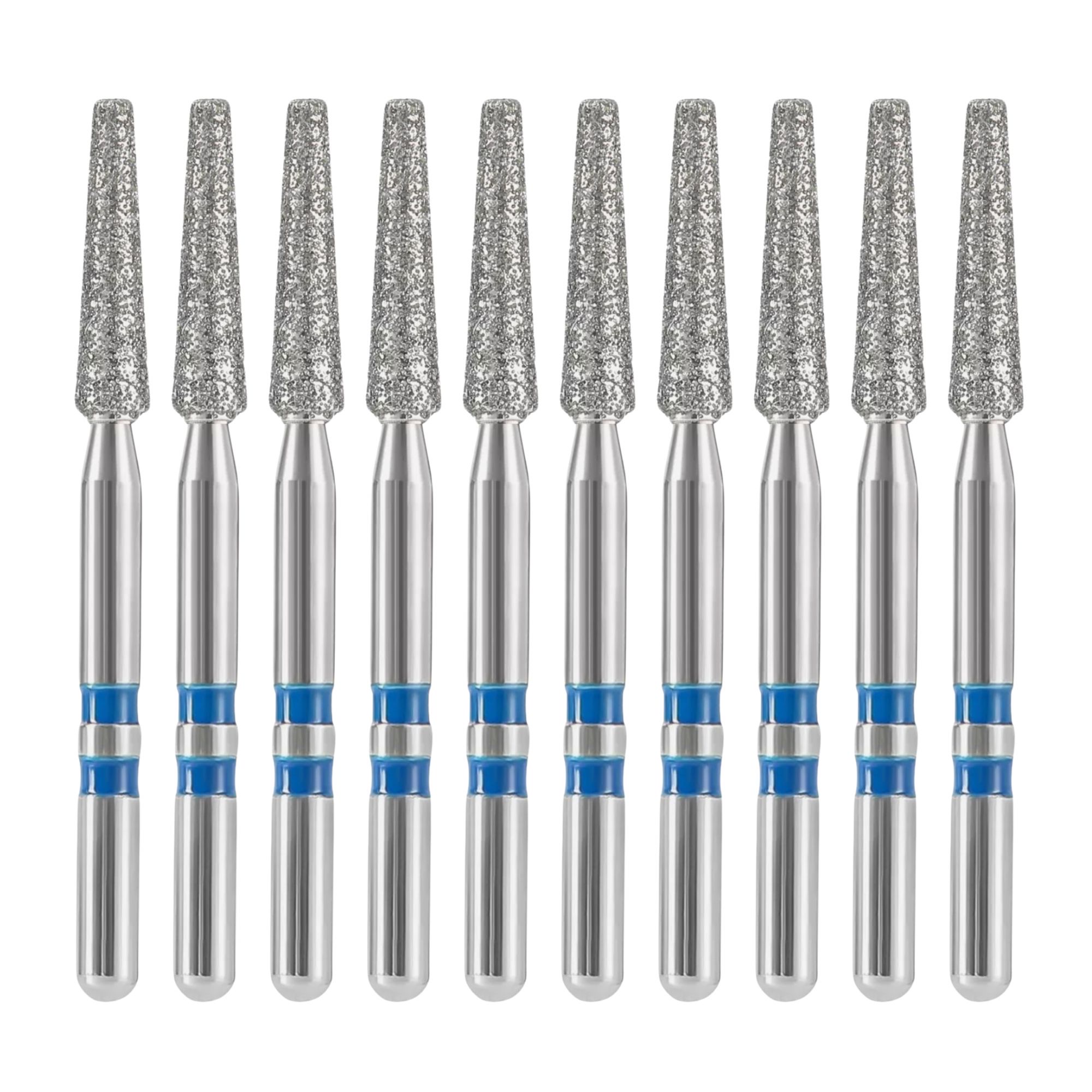

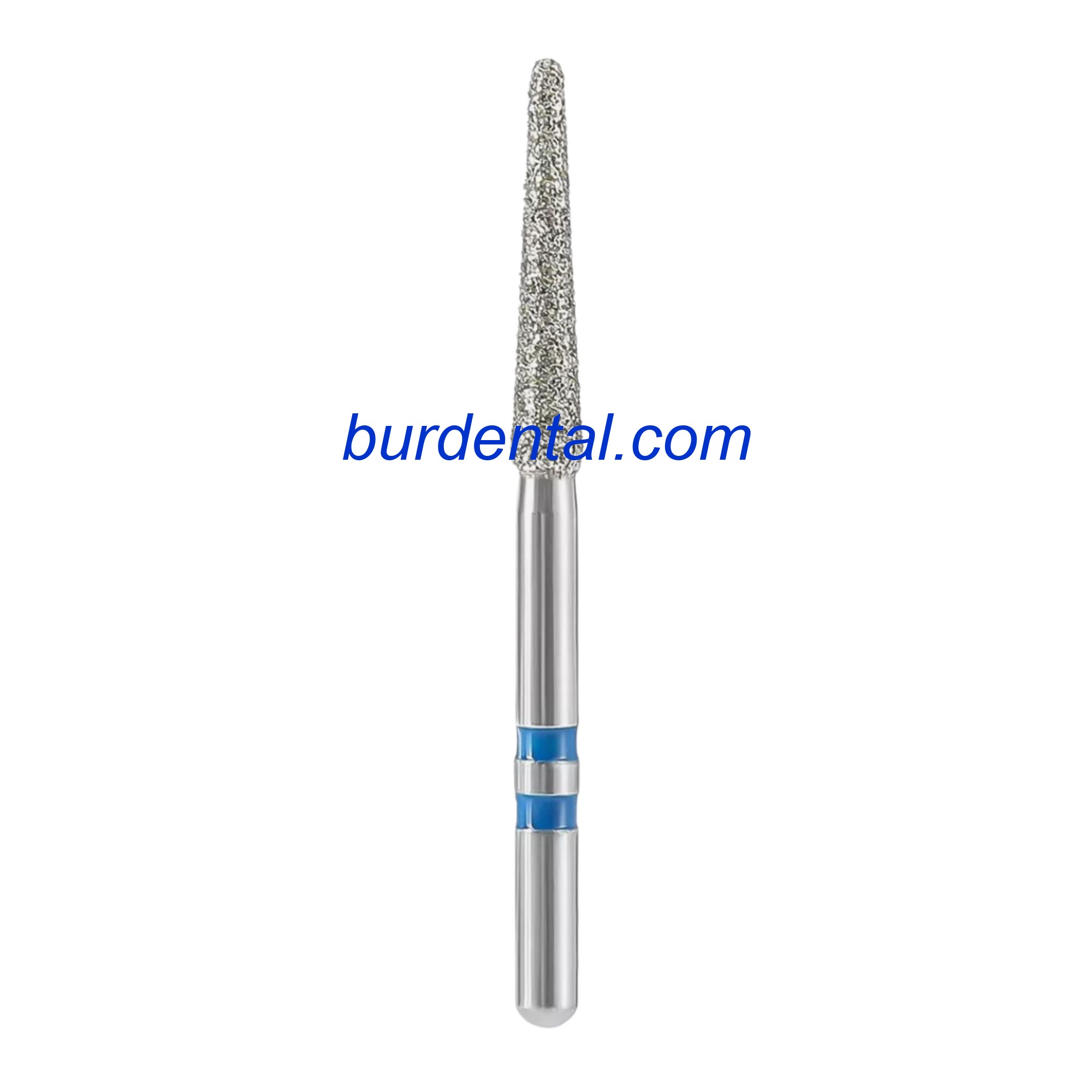

The Z198-016M is a round-end cone diamond bur used for adjusting and contouring sintered zirconia restorations. It is configured with medium grit, a FG shank, and a 1.6 mm head diameter. Buyers can use these visible specifications to match the bur to the required material, head shape and grit stage.

Key Features

• Round-End Cone head profile for restoration adjustment areas that require this shape.
• Medium grit for the corresponding zirconia adjustment or finishing step.
• FG shank with 1.60 mm diameter for compatible FG handpieces.
• 1.6 mm head diameter, shown in the product code Z198-016M.
• Reference model ZTR-24 for purchasing and internal item matching.

Specifications

• Product code: Z198-016M
• Head shape: round-end cone (ISO 198)
• Head diameter: 1.6 mm
• Grit: medium grit
• Shank type: FG
• Shank diameter: 1.60 mm
• Reference model: ZTR-24
• ISO code: ISO 198

Applications

• Adjustment of sintered zirconia crowns, bridges and ceramic restorations.
• Contouring of margins, occlusal surfaces or anatomical details according to the selected head shape.
• Chairside or laboratory use with compatible FG handpieces.
