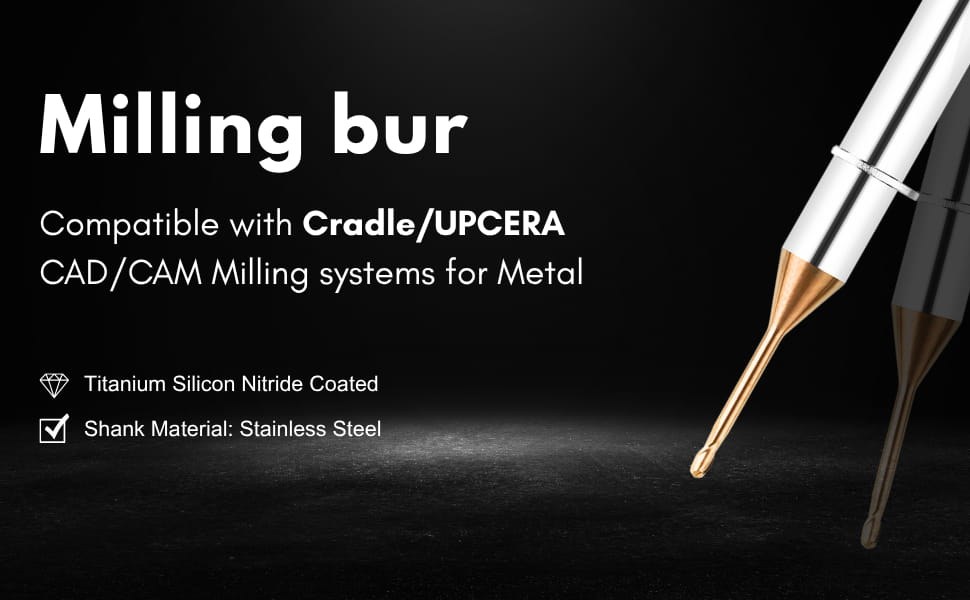

CRD-R10RC5D6TL50-Flat-Metal Cradle Compatible Metal Milling Bur 1.0 mm

Cradle Compatible Metal Milling Bur 1.0 mm

The CRD-R10RC5D6TL50-Flat-Metal is a CAD/CAM milling bur for metal restorations and is compatible with Cradle milling machines including B51 / B52. It features 1.0 mm cutting diameter, 5 mm flute length, 6 mm shank diameter, and 50 mm total length.

Key Features

• Compatible with Cradle milling machines including B51 / B52.
• 1.0 mm cutting diameter and 5 mm flute length for controlled metal milling.
• 6 mm shank diameter and 50 mm total length for the specified machine holder setup.
• TiSiN/CRN coating helps improve heat stability, wear resistance, and cutting consistency during metal milling.

Applications

Milling metal restorations in compatible CAD/CAM workflows. Suitable for crowns, bridges, frameworks, inlays, onlays, and related dental restorations where the material and machine setup match this bur.

Specifications

• Product code: CRD-R10RC5D6TL50-Flat-Metal
• Compatible Machine Brand: Cradle
• Compatible Machines: B51 / B52
• Suitable Materials: Metal
• Tool Material: Diamond-coated carbide
• Flute Diameter: 1.0 mm
• Flute Length: 5 mm
• Shank Diameter: 6 mm
• Total Length: 50 mm
• Coating: Titanium Silicon Nitride Coating (TiSiN), Chromium Nitride Coating (CRN)
• Cutting Efficiency: Approximately 800–1000 Units
