IC-R10RC16D3TL48-Zir imes-icore Compatible Zirconia DC Coated Milling Bur 1.0 mm

imes-icore Compatible Zirconia Milling Bur 1.0 mm

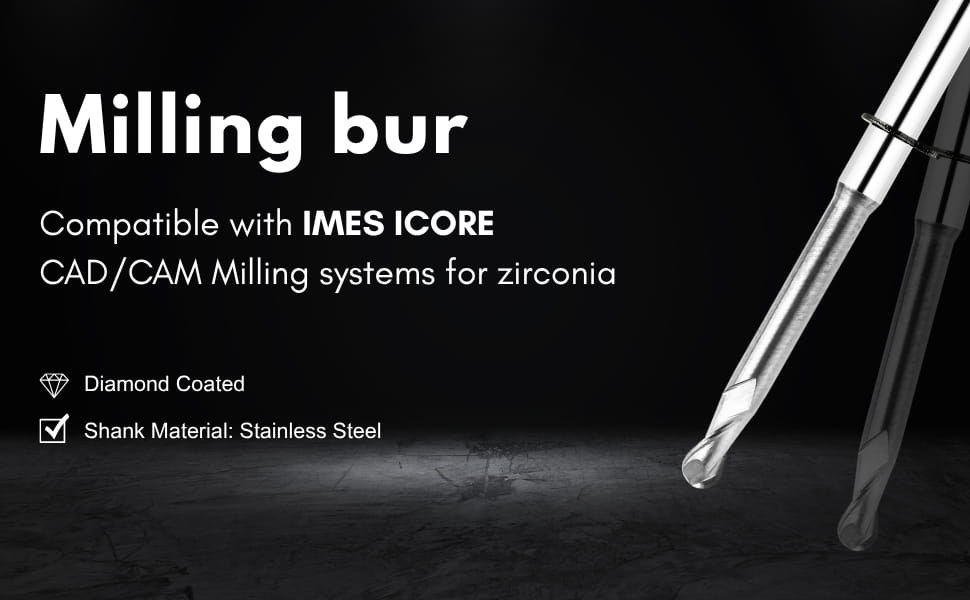

The IC-R10RC16D3TL48-Zir is a CAD/CAM milling bur for zirconia restorations and is compatible with imes-icore milling machines including 250i. It features 1.0 mm cutting diameter, 16 mm flute length, 3 mm shank diameter, and 48 mm total length.

Key Features

• Compatible with imes-icore milling machines including 250i.
• 1.0 mm cutting diameter and 16 mm flute length for controlled zirconia milling.
• 3 mm shank diameter and 48 mm total length for the specified machine holder setup.

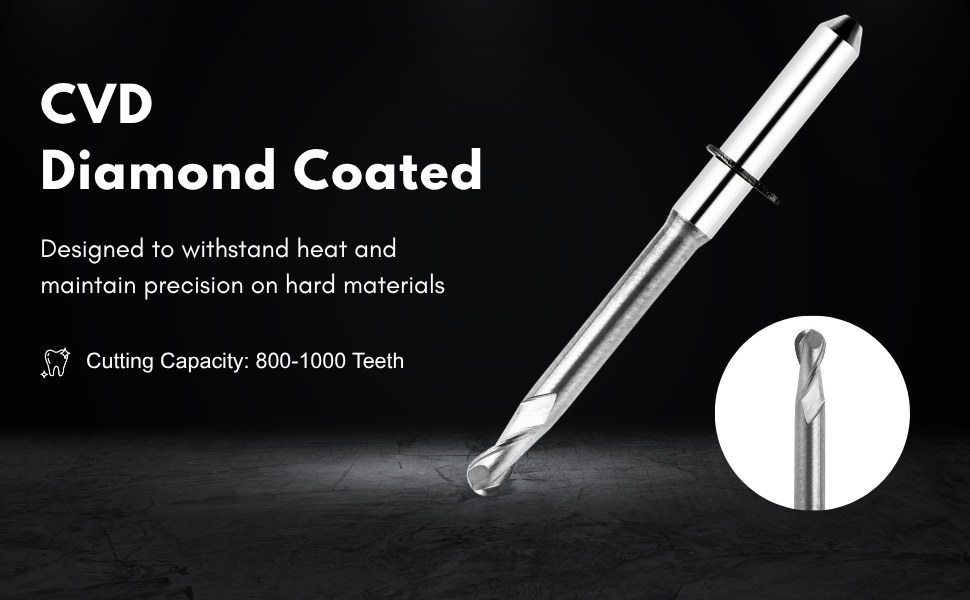

• Diamond coating (DC) supports wear resistance and stable cutting performance for dental laboratory milling.

Applications

Milling zirconia restorations in compatible CAD/CAM workflows. Suitable for crowns, bridges, frameworks, inlays, onlays, and related dental restorations where the material and machine setup match this bur.

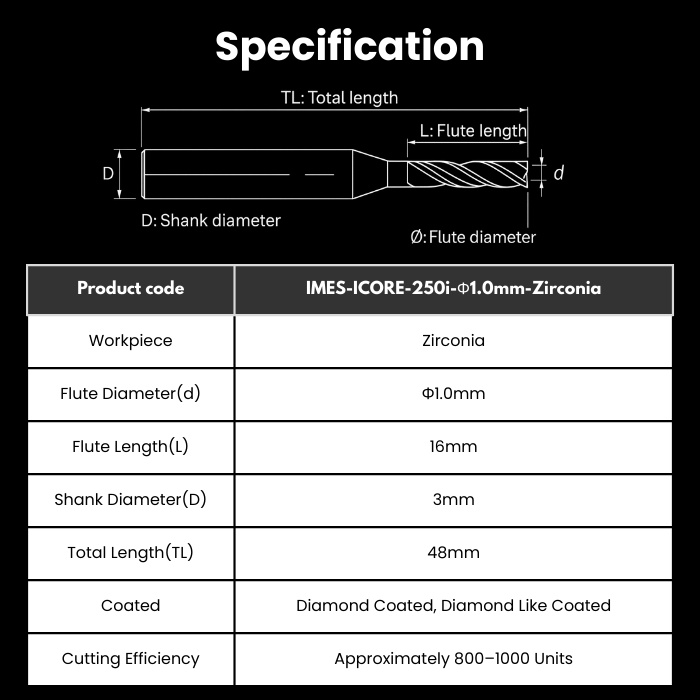

Specifications

• Product code: IC-R10RC16D3TL48-Zir
• Compatible Machine Brand: imes-icore
• Compatible Machines: 250i
• Suitable Materials: Zirconia
• Tool Material: Diamond-coated carbide
• Flute Diameter: 1.0 mm
• Flute Length: 16 mm
• Shank Diameter: 3 mm
• Total Length: 48 mm
• Coating: Diamond Coating (DC)
• Cutting Efficiency: Approximately 800–1000 Units
