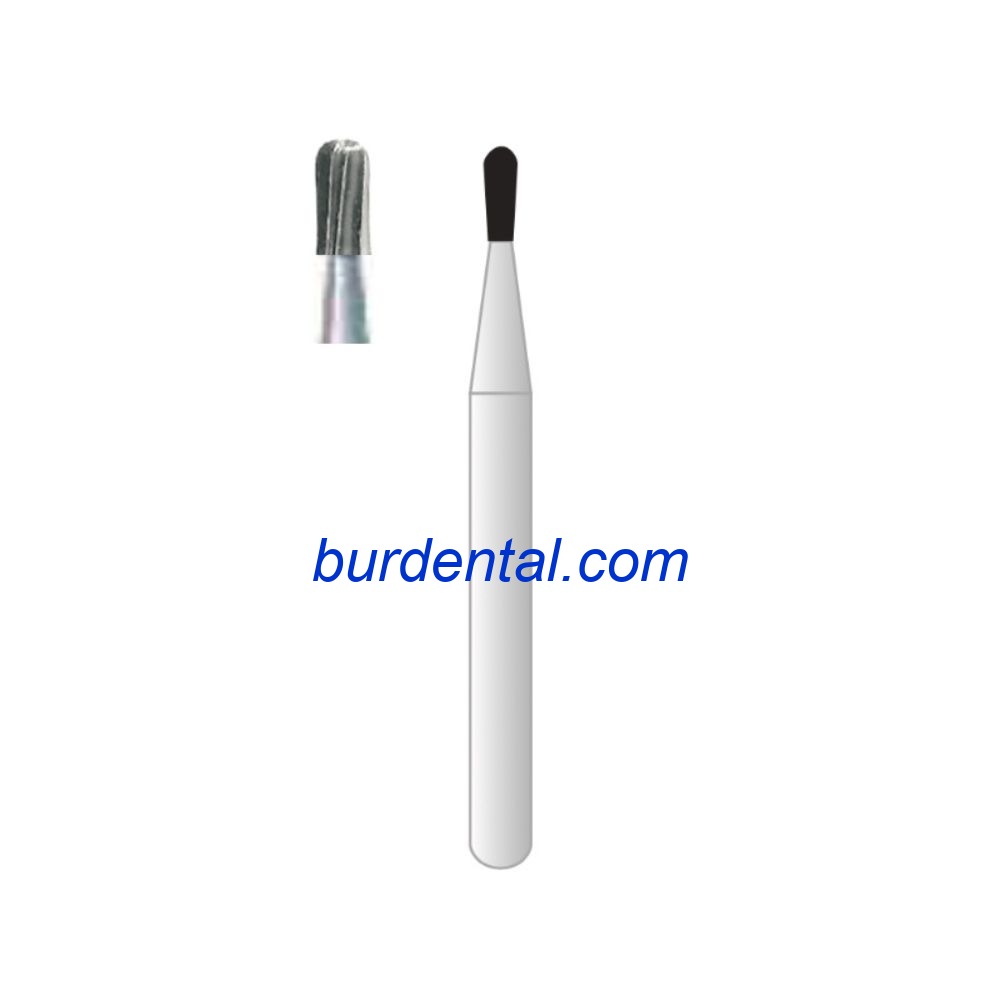

FG246 Pear Tungsten Carbide Bur FG

FG246 Pear Tungsten Carbide Bur FG

The FG246 is a tungsten carbide bur made with tungsten carbide, stainless steel shank, configured with a pear head, FG standard shank, 1.2 mm head diameter. It is designed for cavity preparation and restorative adjustment.

Key Features

• Pear head profile for procedures that require this working shape.
• FG standard shank with 1.6 mm diameter for compatible handpieces.
• 1.2 mm head diameter to match the selected product code.
• Tungsten Carbide, stainless steel Shank construction for the intended dental application.

Specifications

• Product code: FG246
• Head shape: Pear
• Head diameter: 1.2 mm
• Shank type: FG standard
• Shank diameter: 1.6 mm
• ISO code: 500.314.233.001.012
• Size: Head diameter 1.2 mm; cutting length 2.9 mm; total length 19 mm; shank diameter 1.6 mm
• Total length: 19 mm

Applications

• Cavity preparation and restorative adjustment.
• Use where a pear working shape matches the clinical or laboratory requirement.
• Compatible with handpieces or holders that accept FG standard instruments.
