Cylinder Tungsten Carbide Bur FG557L FG Standard 1mm

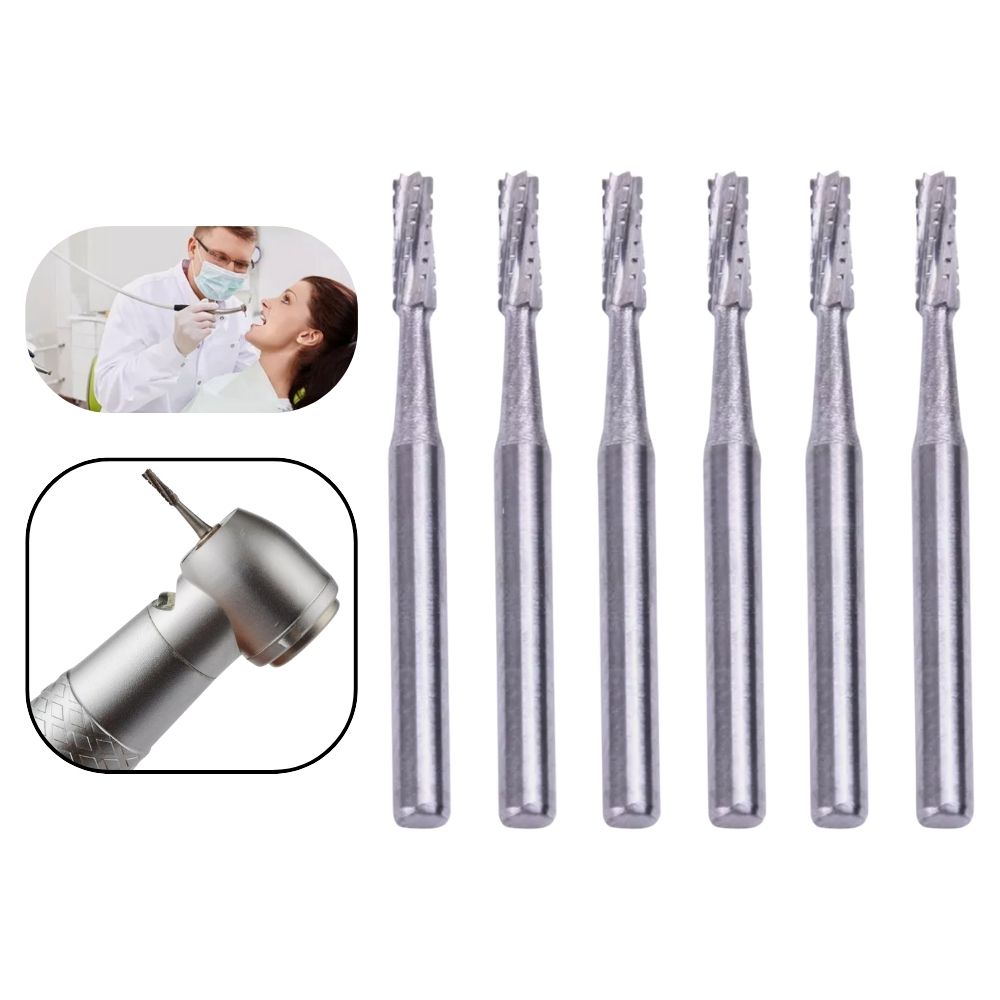

FG557L Cylinder Tungsten Carbide Bur FG

The FG557L is a tungsten carbide bur made with tungsten carbide, stainless steel shank, configured with a cylinder head, FG standard shank, 1 mm head diameter. It is designed for cavity preparation and restorative adjustment.

Key Features

• Cylinder head profile for procedures that require this working shape.
• FG standard shank with 1.6 mm diameter for compatible handpieces.
• 1 mm head diameter to match the selected product code.
• Tungsten Carbide, stainless steel Shank construction for the intended dental application.

Specifications

• Product code: FG557L
• Head shape: Cylinder
• Head diameter: 1 mm
• Shank type: FG standard
• Shank diameter: 1.6 mm

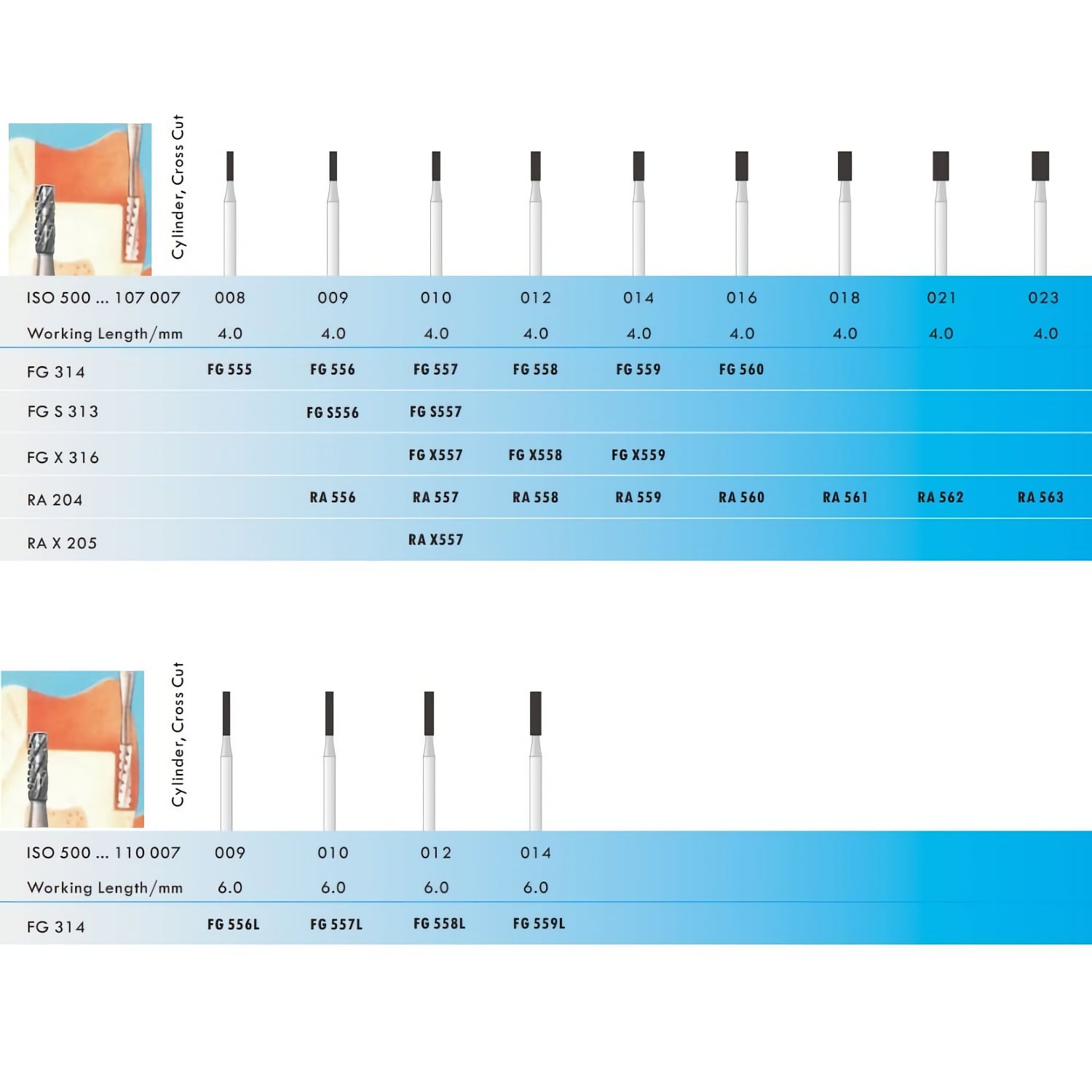

• ISO code: 500.314.110.007.010
• Size: Head diameter 1 mm; cutting length 6 mm; total length 21 mm; shank diameter 1.6 mm
• Total length: 21 mm

Applications

• Cavity preparation and restorative adjustment.
• Use where a cylinder working shape matches the clinical or laboratory requirement.
• Compatible with handpieces or holders that accept FG standard instruments.

When to choose the long 557

The FG557L is the surgical-length version of the ISO 557 straight fissure cross-cut carbide bur. The longer shank reaches subgingival margins and sectioning depths that a standard 557 bur cannot, while the cross-cut blades keep chip clearance fast under irrigation — which is why long fissure burs are a fixture on extraction and crown-removal trays. Wall angles stay parallel for clean, controlled cuts. Factory-direct wholesale with CE & ISO certification.
