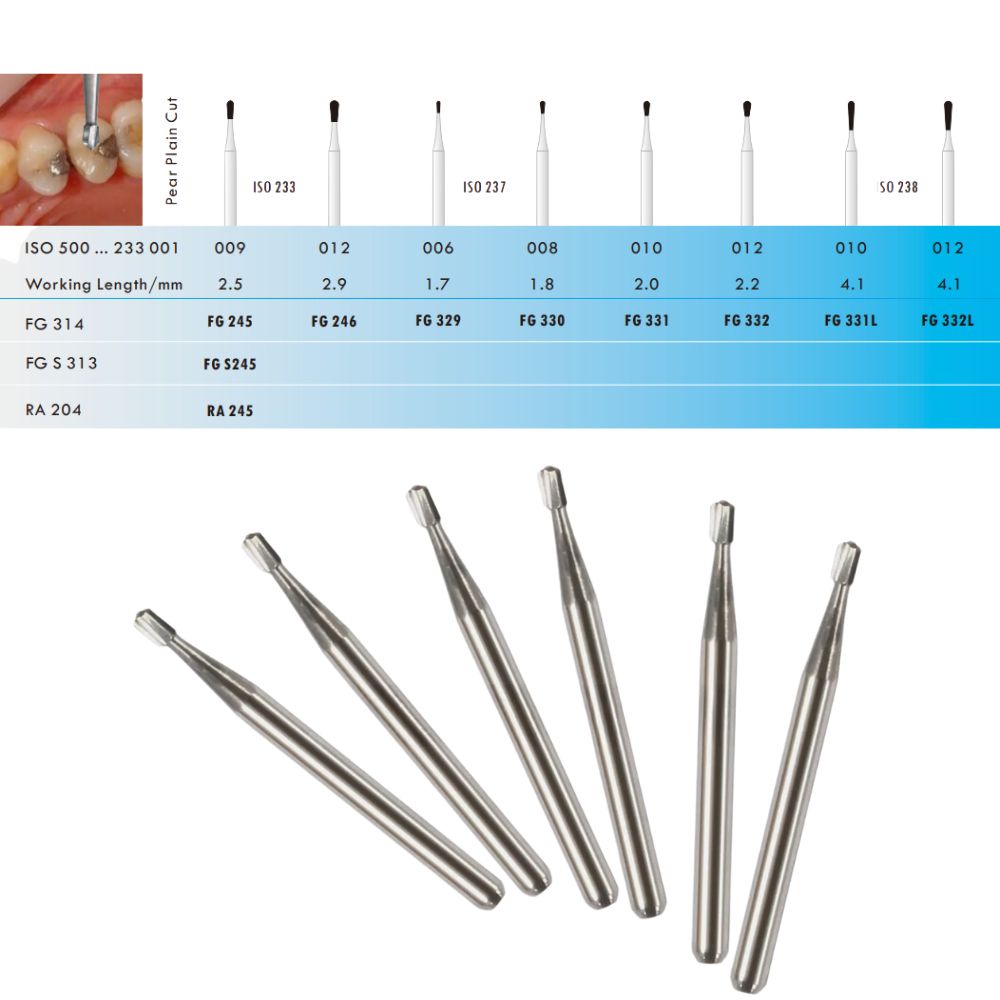

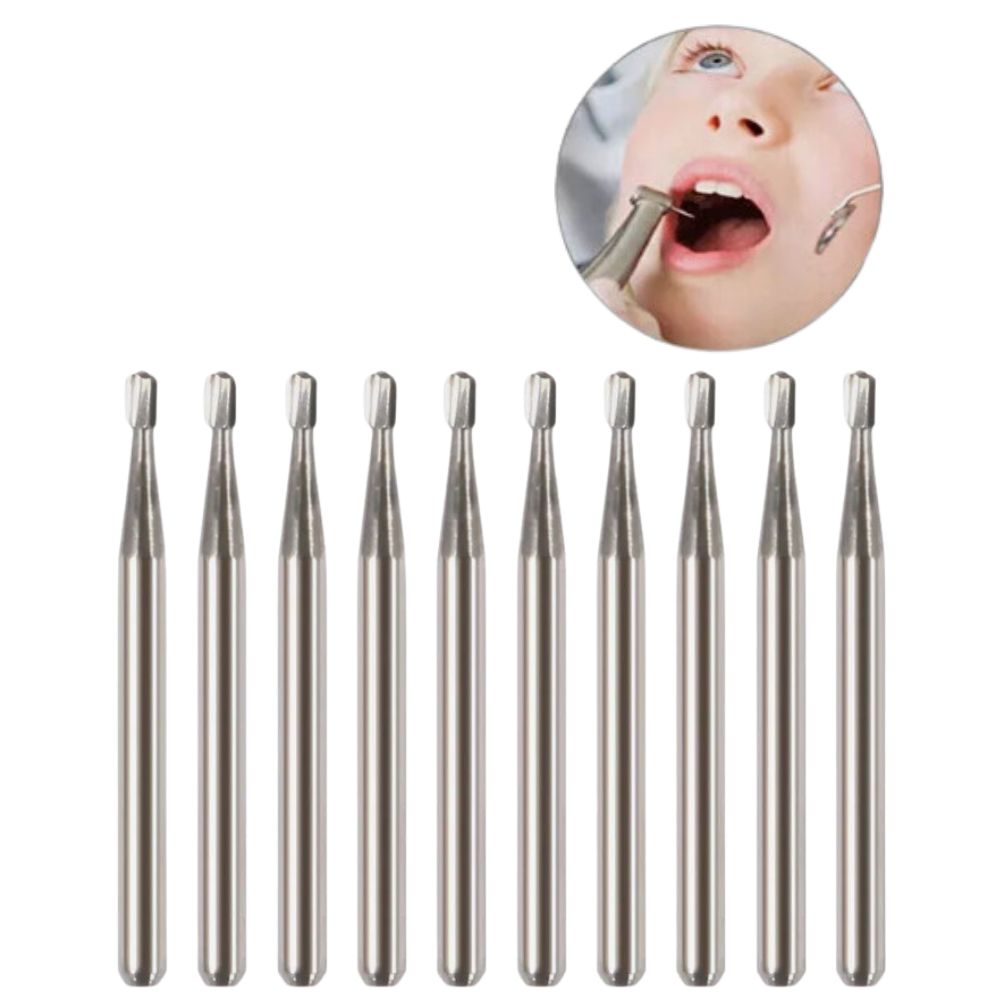

FGS245 Pear Tungsten Carbide Bur FG

FGS245 Pear Tungsten Carbide Bur FG

The FGS245 is a tungsten carbide bur made with tungsten carbide, stainless steel shank, configured with a pear head, 313-FG Short shank, 0.9 mm head diameter. It is designed for cavity preparation and restorative adjustment.

Key Features

• Pear head profile for procedures that require this working shape.
• 313-FG Short shank with 1.6 mm diameter for compatible handpieces.
• 0.9 mm head diameter to match the selected product code.
• Tungsten Carbide, stainless steel Shank construction for the intended dental application.

Specifications

• Product code: FGS245
• Head shape: Pear
• Head diameter: 0.9 mm
• Shank type: 313-FG Short
• Shank diameter: 1.6 mm
• ISO code: 500.313.233.001.009
• Size: Head diameter 0.9 mm; cutting length 2.5 mm; total length 17 mm; shank diameter 1.6 mm
• Total length: 17 mm

Applications

• Cavity preparation and restorative adjustment.
• Use where a pear working shape matches the clinical or laboratory requirement.
• Compatible with handpieces or holders that accept 313-FG Short instruments.
