How to Use Diamond Burs for Wood Carving: A Guide
Diamond burs are best known for dental work, but they are equally effective for detailed wood carving. The diamond grit grinds wood fibers rather than slicing them, which gives carvers finer control over textures and details than standard carbide cutters. This guide walks through the tools, setup, step-by-step carving process, and safety rules for using diamond burs on wood.
Why Choose Diamond Burs for Wood Carving
Standard carbide burs cut wood by removing chips. Diamond burs work differently. The diamond particles bonded to the bur surface act as thousands of tiny grinding points that abrade the wood into fine dust. This grinding action provides several advantages for carving:
- Smoother surface finish -- Less tearing of wood grain compared to carbide cutters
- Better detail control -- Diamond grit removes material gradually, reducing the risk of removing too much
- Versatile shapes -- Available in flame, ball, cylinder, inverted cone, and other profiles for different carving needs
- Long lifespan -- Diamond is one of the hardest substances, so burs maintain their shape through extended use
Unlike carbide burs, which produce small wood chips, diamond burs create fine wood dust. This means less cleanup of large chips but more airborne particles, making dust collection equipment a worthwhile investment for any serious carving workspace.
Tools and Materials You Need
Before starting a wood carving project with diamond burs, gather these supplies:
Required Equipment
| Tool | Purpose |
|---|---|
| Rotary tool (Dremel or flex shaft) | Powers the diamond burs at variable speeds |
| Diamond burs (assorted shapes) | Grinding and shaping the wood |
| Handpiece (if using flex shaft) | Holds the bur and provides precise control |

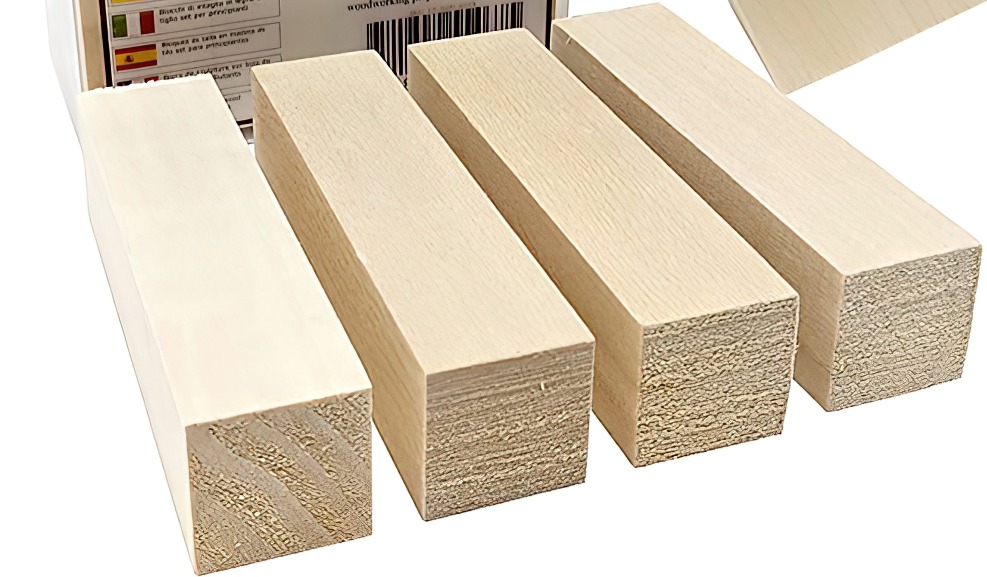

| Basswood or butternut block | Soft, even-grained wood ideal for carving |
| Scroll saw or band saw | Rough-cuts the wood block to approximate shape |

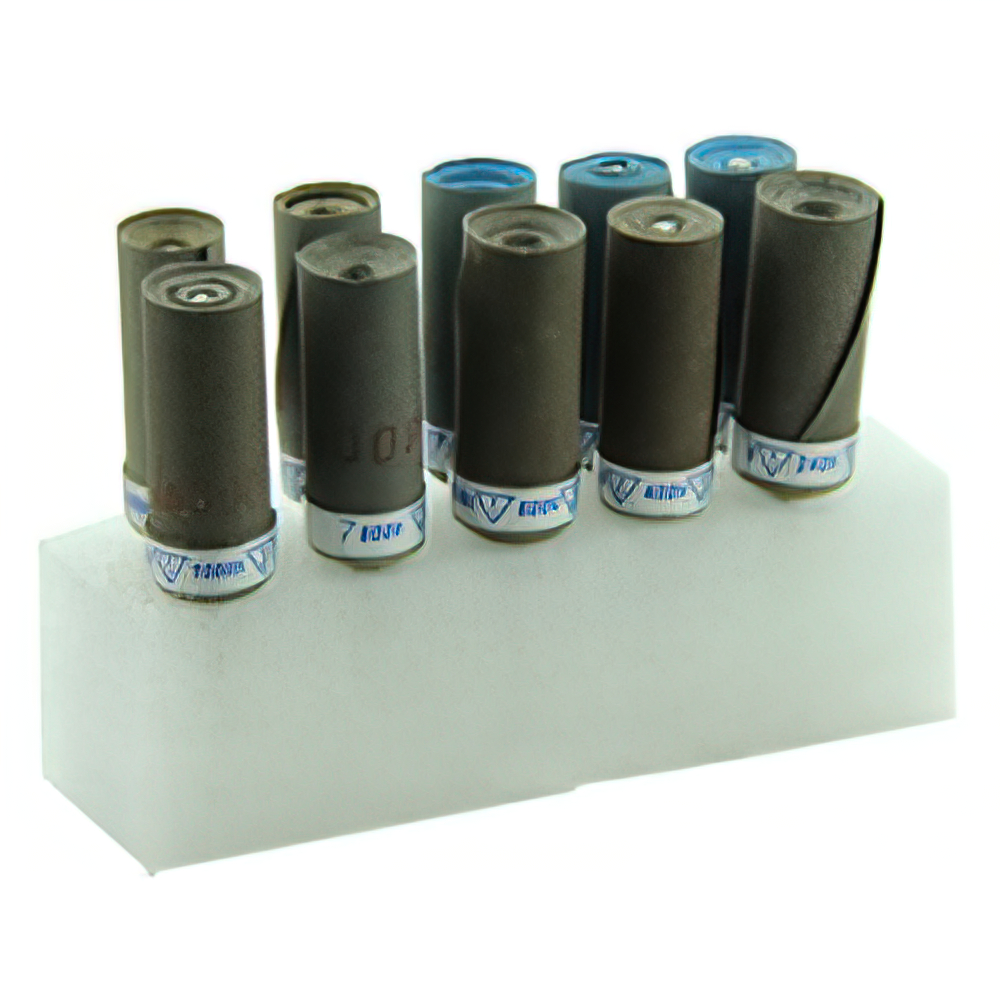

| Sandpaper (220-400 grit) | Final smoothing after carving |
Safety Gear
| Item | Why It Matters |
|---|---|
| Safety glasses | Protects eyes from wood dust and debris |
| Dust mask (N95 or better) | Prevents inhaling fine wood particles |
| Woodcarving apron | Keeps clothing clean and catches debris |
| Dust collector | Reduces airborne particles in the workspace |
Choosing the Right Diamond Bur Shapes
Each bur shape serves a specific purpose in the carving process. Selecting the right shape for each stage saves time and produces cleaner results.

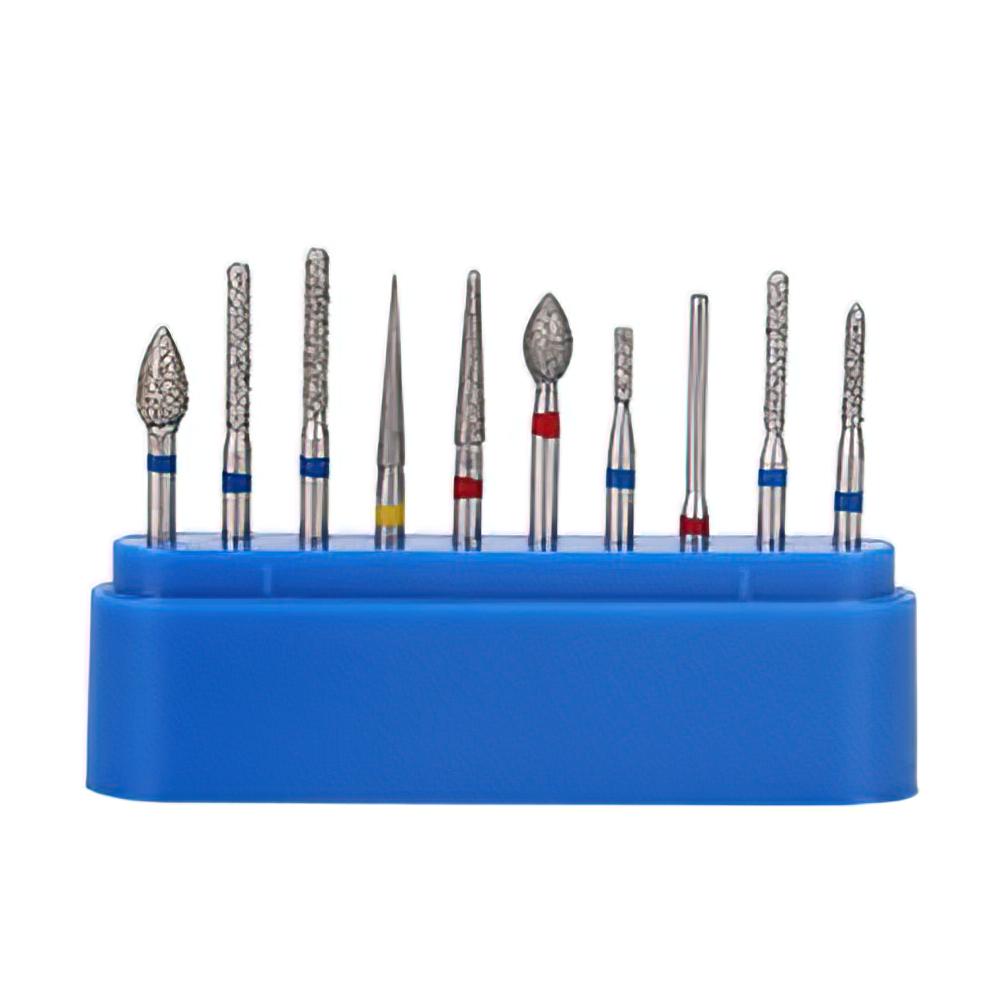

Shape Guide for Wood Carving
| Bur Shape | Best Use | When to Use |
|---|---|---|
| Inverted Cone | Straight lines and flat-bottom channels | Initial outline carving |
| Flame | Removing stock from angles, adding depth | Shaping and detailing |
| Ball (Round) | Concave surfaces, eye sockets, nostrils | Detail work on organic shapes |
| Cylinder | Flat walls and straight edges | Architectural details |
| Taper | V-shaped grooves and fine lines | Hair, feathers, and fur textures |
For a broader look at how different bur shapes apply to rotary tool projects, see our article on burs for Dremel wood carving.
Step-by-Step Wood Carving with Diamond Burs
This example follows the process for carving an animal figure, but the same steps apply to any subject.
Step 1: Transfer the Design

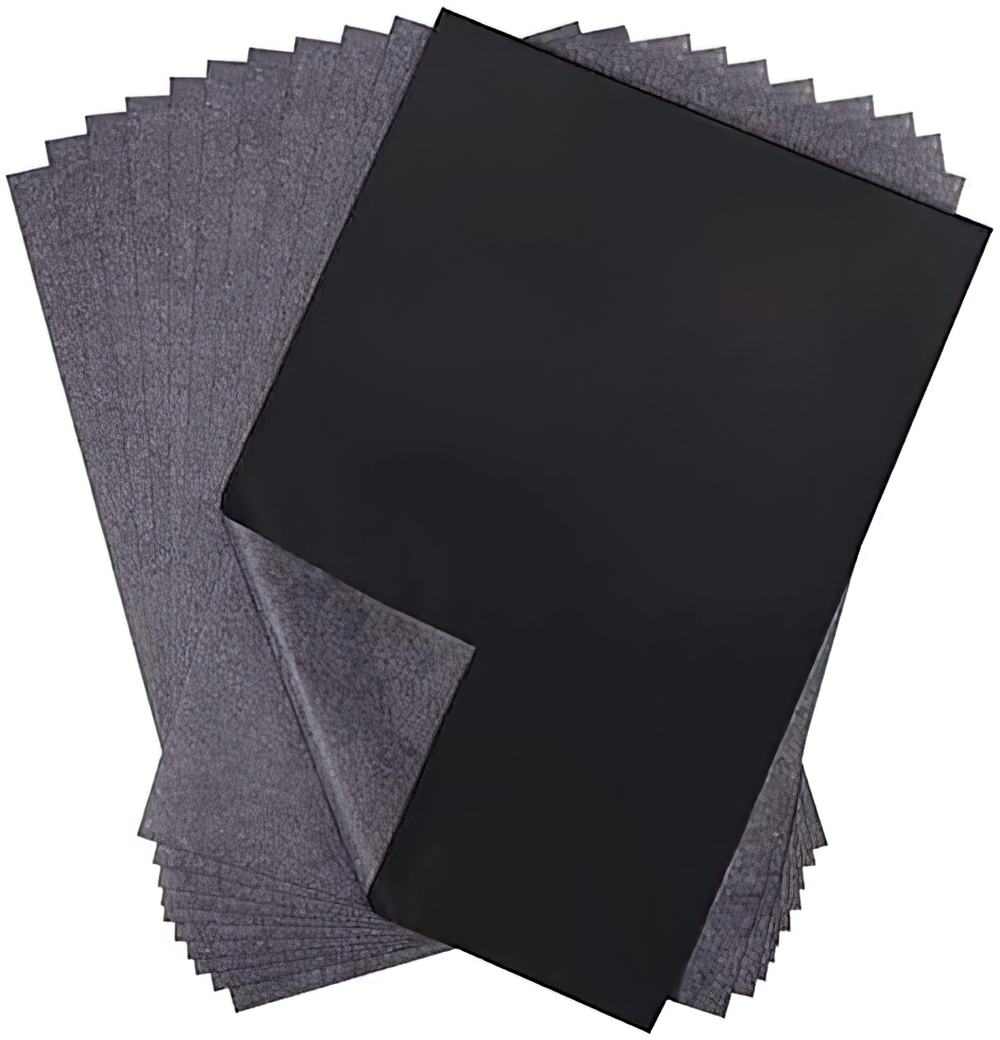

Print or draw your template at the correct scale. Place carbon paper face-down on the basswood block, position the template on top, and trace the outline with a pen. Press firmly to transfer clean lines. Remove the template and carbon paper when finished.
Step 2: Mark Reference Lines
Use colored pens to mark different depth levels on the wood. For example, use red for areas that stay at full height and blue for areas that need to be carved deeper. These color codes serve as visual guides during the grinding process and prevent accidental over-removal.
Step 3: Outline with an Inverted Cone Bur

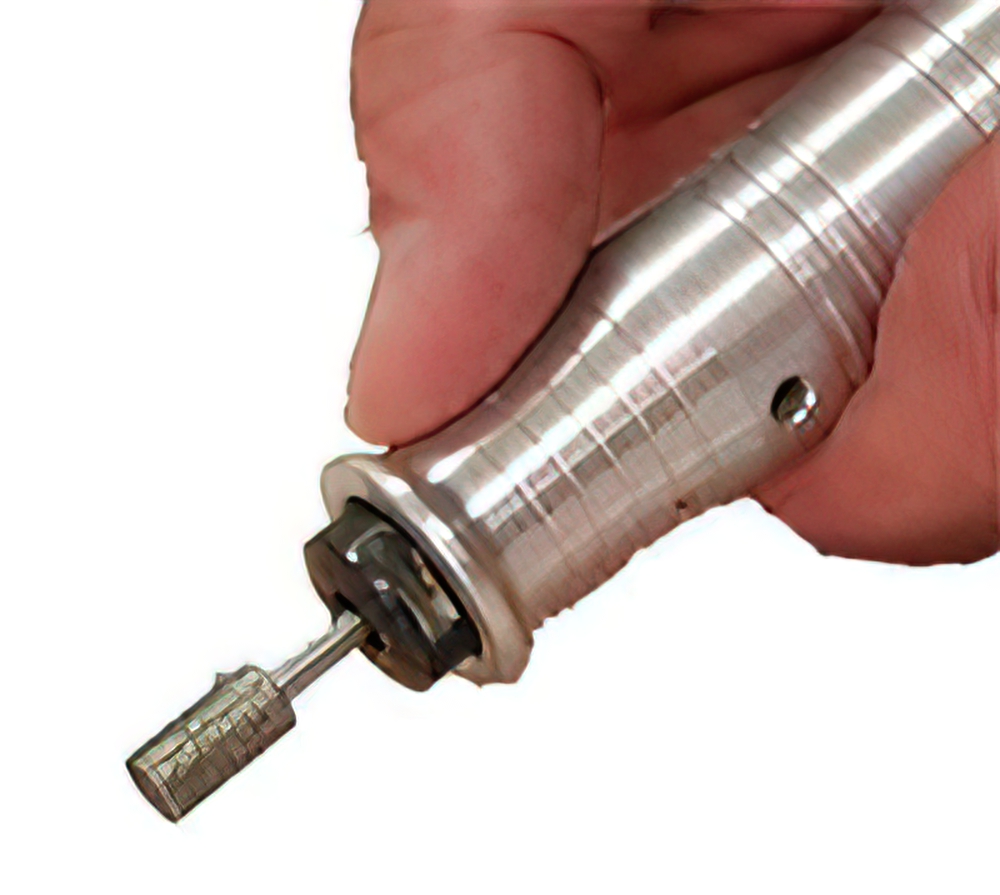

Insert an inverted cone diamond bur into the handpiece and attach it to your rotary tool. Set the speed to medium (around 15,000-20,000 RPM for basswood). Trace along the pencil lines to create a defined border around the design. Keep the bur moving steadily. Staying in one spot too long creates burn marks on the wood.
Step 4: Remove Background Material
Switch to a flame-shaped diamond bur. The flame shape is ideal for removing stock from any angle and can clear large areas of wood quickly. Work from the outside edges toward the center of each waste area. Maintain a firm but relaxed grip on the handpiece and let the bur do the work without excessive pressure.
Step 5: Shape the Form
Continue with the flame bur to round over edges and establish the three-dimensional form. Keep your wrist flexible to allow micro-movements in all directions. Rotate the workpiece frequently so you can approach each area from the best angle. Build up the form gradually rather than trying to achieve the final shape in one pass.
Step 6: Add Details
Switch to smaller ball and taper burs for fine details such as eyes, feathers, scales, or fur texture. Reduce the speed slightly for better control in these areas. Move the bur back and forth from multiple angles to create depth and dimension in detailed regions.
Step 7: Sand and Finish
After carving is complete, use sandpaper to smooth any rough areas. Diamond burs are also useful for reaching spots that sandpaper cannot access, such as deep grooves and tight inside corners. Start with 220 grit and work up to 400 grit for a smooth finish.
Speed Settings for Different Woods
| Wood Type | Hardness | Recommended RPM |
|---|---|---|
| Basswood | Soft | 15,000 - 20,000 |
| Butternut | Soft | 15,000 - 20,000 |
| Walnut | Medium | 20,000 - 25,000 |
| Cherry | Medium | 20,000 - 25,000 |
| Oak | Hard | 25,000 - 30,000 |
Higher speeds generate more heat. When working at higher RPMs, move the bur continuously to avoid scorching the wood surface.
Safety Rules for Rotary Tool Carving
Follow these safety guidelines every time you use diamond burs in a rotary tool. For more safety information, read our guide on Dremel rotary tool safety.
- Secure the bur properly -- The bur must not extend too far from the handpiece. Loose or overly long burs can eject, shatter, or cause injury
- Check air pressure -- If using an air-driven handpiece, never exceed the manufacturer's recommended operating pressure
- Wear eye protection and a dust mask -- Diamond burs produce very fine wood dust that is hazardous to inhale
- Work in a ventilated area -- Use a dust collector or work near an open window to minimize dust buildup
- Inspect burs before use -- Check for chips, cracks, or worn diamond coating before each session
- Keep hands clear -- Never hold small workpieces with bare fingers near a spinning bur. Use a vise or clamp instead
Common Mistakes to Avoid
- Pressing too hard -- Excessive pressure slows the bur, generates heat, and produces a rough surface. Let the diamond grit do the cutting
- Skipping grit stages -- Moving directly from carving to finishing without intermediate sanding leaves visible tool marks
- Using the wrong shape -- A ball bur in a straight channel or a cylinder bur on a curved surface produces poor results
- Ignoring grain direction -- Even with diamond burs, carving against the grain can cause tear-out in softer woods
With practice and the right selection of diamond burs, wood carving becomes a precise and satisfying craft. Start with simple projects in soft wood, master the basic bur shapes, and gradually work up to more detailed carvings.
Maintaining Your Diamond Burs
Wood resin and sawdust build up on diamond bur surfaces over time, reducing their cutting ability. Clean your burs after each carving session by soaking them in warm soapy water and scrubbing with a brass wire brush. Avoid steel brushes, which can damage the diamond coating. Store burs in a dedicated holder or bur block to protect the diamond surfaces from chipping against each other. A well-maintained set of diamond burs will last through dozens of carving projects before the diamond grit begins to wear down noticeably.
