Diamond Burs vs Carbide Burs: When to Use Each
Choosing between diamond burs and carbide burs is one of the most frequent decisions in clinical dentistry. Both are indispensable rotary instruments, but each excels in different situations. This guide breaks down the mechanical differences, clinical applications, and selection criteria so you can pick the right bur for every procedure.

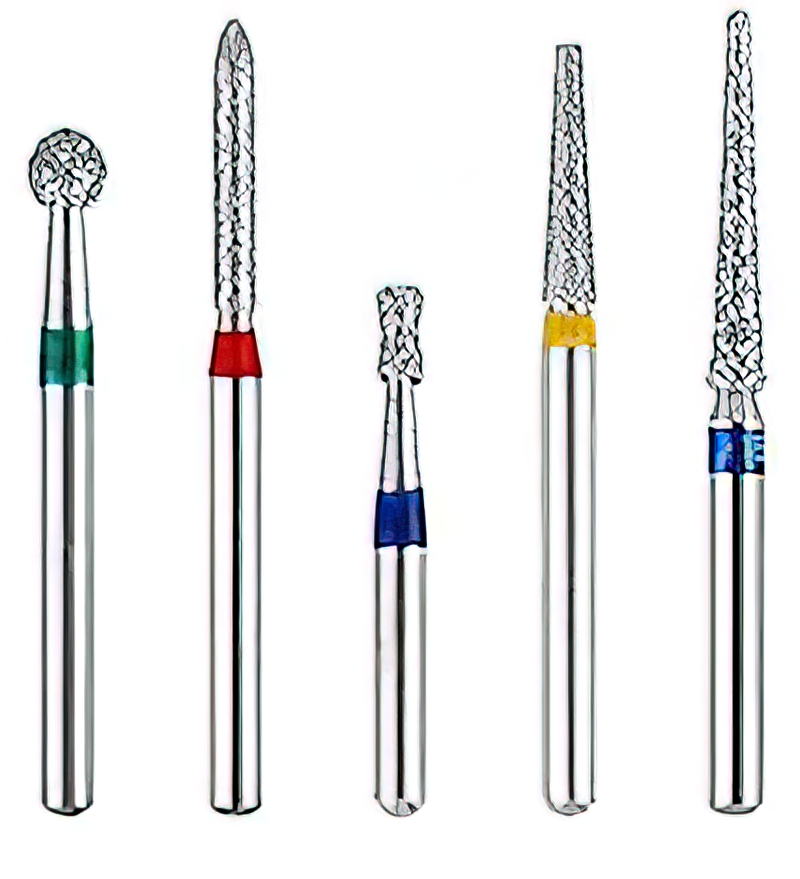

How Diamond Burs Work
Diamond burs (ISO 806) feature a stainless-steel shank coated with industrial diamond particles bonded to the working end. Rather than cutting with blades, they grind material away through abrasion. The grit size, measured in microns, determines how aggressively they remove tissue and how smooth the resulting surface will be.
The diamond particles are attached to the metal shank using electroplating or sintering processes. Electroplated burs have a single layer of diamond that provides aggressive initial cutting but wears down relatively quickly. Sintered diamond burs embed particles throughout a metal matrix, offering longer life at the cost of slightly less aggressive initial cutting. Most FG diamond burs used in clinical dentistry are electroplated for maximum efficiency during tooth preparation.
Diamond Grit Sizes and Their Uses
| Grit Band Color | Particle Size | Application |
|---|---|---|
| Black (super coarse) | 180 µm | Rapid bulk reduction |
| Green (coarse) | 150 µm | Crown preparation, enamel removal |
| Blue (standard/medium) | 106 µm | General purpose cutting |
| Red (fine) | 46 µm | Finishing, margin refinement |
| Yellow (extra fine) | 25 µm | Final polishing, smoothing |
Diamond burs perform best in a high-speed handpiece (FG shank) with steady water coolant. They cut through enamel, porcelain, zirconia, and glass ceramics efficiently. However, the abrasive surface tends to generate more friction heat than bladed instruments, making adequate irrigation necessary to prevent thermal injury to the pulp. For a full breakdown of shank compatibility, see our guide on the three main types of dental bur shanks.

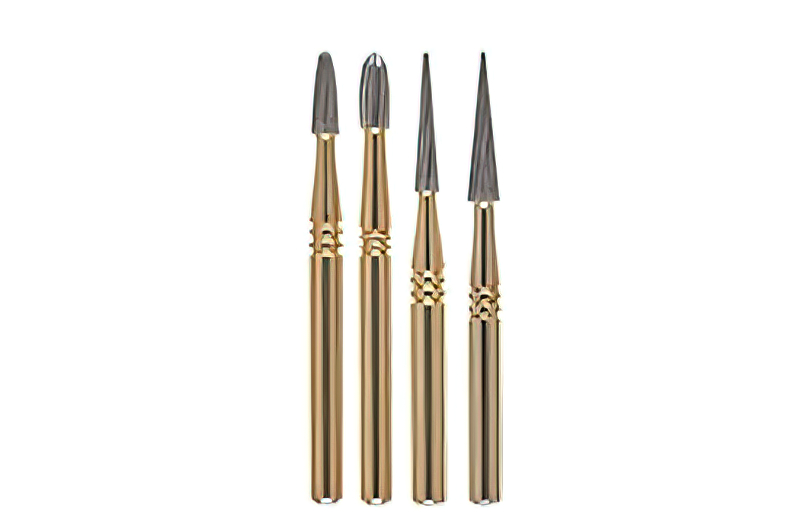

How Carbide Burs Work
Tungsten carbide burs (ISO 500) are milled from solid tungsten carbide blanks. Instead of grinding, their precisely machined blade flutes shear material in clean chips. This blade-cutting action produces a smoother surface finish and generates less frictional heat compared to abrasive instruments. Tungsten carbide is approximately three times harder than steel, giving these burs the rigidity needed to maintain sharp cutting edges through repeated use.
Carbide Flute Counts and Their Impact
The number of flutes on a carbide bur directly affects its cutting behavior, surface finish, and clinical application. Fewer flutes mean larger chip spaces and more aggressive material removal, while more flutes produce finer cuts at the cost of slower bulk removal.
- 6-blade carbide burs – Aggressive cutting with large chip spaces, used for bulk dentin removal, cavity preparation, and cutting through old restorations quickly.
- 12-blade carbide burs – Finer cut with reduced chatter, used for finishing composite restorations, margin trimming, and contouring occlusal anatomy.
- 30-blade (finishing) carbide burs – Ultra-smooth finish approaching polished quality, used for final contouring of composites and amalgam before polishing steps.
Carbide burs are available in both FG (friction-grip) and RA (right-angle latch-type) shanks, making them compatible with both high-speed and low-speed handpieces. This versatility is a significant advantage in procedures that require switching between speeds, such as cavity preparation followed by slow-speed finishing.
Side-by-Side Comparison
| Feature | Diamond Burs | Carbide Burs |
|---|---|---|
| Cutting mechanism | Abrasive grinding | Blade shearing |
| Surface finish | Rougher (coarse grit); smooth (fine grit) | Consistently smooth |
| Heat generated | Higher – requires steady coolant | Lower – less thermal risk |
| Debris behavior | Fine dust; can clog the diamond coating | Clean chips; minimal clogging |
| Lifespan | Replace after roughly 5 preparations | Longer; can be resharpened |
| ISO classification | ISO 806 | ISO 500 |
| Handpiece compatibility | High-speed (FG) | High-speed (FG) and low-speed (RA) |
| Material suitability | Enamel, porcelain, zirconia, glass ceramic | Dentin, composite, amalgam, acrylic |
For details on how to read the ISO numbering system on your bur packaging, refer to our ISO number guide.
Clinical Scenarios: Which Bur to Reach For
Crown and Bridge Preparation
Diamond burs are the standard choice for crown preparation. A coarse-grit round-end taper creates depth-orientation grooves on the facial and occlusal surfaces first, establishing the correct reduction depth. A medium-grit taper then completes the axial and occlusal reduction. Switch to a fine-grit diamond for margin finishing, where a smooth, well-defined margin line is critical for impression accuracy and restoration fit. The abrasive grinding action handles enamel and existing porcelain restorations efficiently without the chatter that carbide blades can produce on hard ceramic surfaces.
Cavity Preparation
Carbide burs dominate cavity preparation. A #330 pear-shaped carbide creates the initial outline form, while a #245 bur extends the preparation with controlled depth. The blade action leaves a cleaner cavity floor with less smear layer than diamond grinding, which improves adhesive bonding. Carbide burs also provide better tactile feedback when transitioning from enamel to dentin, helping clinicians avoid unnecessary pulp exposure. Learn more about the widely used 330 carbide bur and its applications.
Composite Finishing and Polishing
After placing a composite restoration, a 12- or 30-blade carbide finishing bur trims flash and contours anatomy without gouging the restoration surface. The blade action removes material predictably, allowing precise anatomical shaping of marginal ridges and occlusal grooves. Follow up with silicone polishers for final luster. This two-step approach, carbide finishing followed by silicone polishing, consistently produces superior surface quality compared to using either step alone.
Adjusting Zirconia and Porcelain
Only diamond burs should be used for adjusting fired zirconia or porcelain restorations chairside. Carbide blades cannot efficiently cut these ultra-hard ceramics and will dull rapidly, sometimes within seconds. Use a fine-grit or extra-fine-grit diamond and keep water spray constant to avoid micro-cracking from thermal stress. After adjustment, always re-polish the adjusted area with appropriate ceramics polishing instruments to restore surface smoothness and reduce plaque accumulation.
Removing Old Restorations
Carbide burs are preferred for cutting out amalgam or composite restorations. Their blade action chips the filling material cleanly without pulverizing it into fine dust, improving visibility during the procedure. The lower heat output reduces the risk of pulpal irritation during prolonged removal, and the clean chip evacuation prevents packing of debris into the preparation. For amalgam removal specifically, a cross-cut fissure carbide bur sections the restoration efficiently, allowing removal in pieces rather than grinding it out completely.
Endodontic Access
Endodontic access openings typically begin with a diamond round bur to penetrate enamel, then transition to a carbide round bur for controlled dentin removal as the clinician approaches the pulp chamber. This combination takes advantage of each bur type where it performs best. Specialized instruments like the Endo Z bur, with its non-cutting tip, help refine the access cavity without risking perforation of the pulp chamber floor.
Decision Matrix: Which Bur for Which Material?
The following table provides a quick clinical reference for matching bur type to specific materials and procedures. Print it out or bookmark this page for chairside use.
| Material / Procedure | Recommended Bur Type | Why |
|---|---|---|
| Enamel reduction | Diamond (coarse or medium grit) | Enamel is the hardest tissue in the body. Diamond abrasion grinds through it efficiently without blade chatter or excessive force. |
| Dentin removal | Carbide (6-blade) | Blade shearing leaves a cleaner cavity floor with less smear layer, improving bond strength. Better tactile feedback near the pulp. |
| Composite finishing | Carbide (12- or 30-blade) | Multi-flute blades trim resin predictably without gouging. Produces a smooth surface ready for silicone polishing. |
| Zirconia adjustment | Diamond (fine or extra-fine grit) | Zirconia is too hard for carbide blades—they dull within seconds. Only diamond abrasion can grind this ceramic effectively. |
| Porcelain veneer preparation | Diamond (medium grit for reduction, fine for finishing) | Controlled depth cuts through enamel with smooth margin definition. Diamond handles the ceramic layer of existing restorations cleanly. |
| Amalgam removal | Carbide (cross-cut fissure) | Blade action chips amalgam into clean pieces rather than pulverizing it into fine dust. Lower heat protects the pulp during prolonged removal. |
| Crown preparation | Diamond (coarse for depth cuts, fine for margin) | Abrasive grinding cuts through enamel and existing ceramic restorations without blade chatter. Fine grits produce precise margin lines for accurate impressions. |
| Endodontic access | Diamond round (enamel) → Carbide round (dentin) | Diamond penetrates enamel fast; carbide gives better tactile control approaching the pulp chamber. This two-bur sequence is the standard taught in endo programs. |
For a deeper look at ISO numbering and how it encodes bur material, shape, and grit, see our dedicated guide.
Tips for Getting the Best Performance
- Use light, intermittent pressure. Pressing too hard stalls both diamond and carbide burs, increasing heat and reducing cutting efficiency. Let the bur do the work rather than forcing it through tissue.
- Always use water coolant with diamond burs. The abrasive mechanism generates significant friction heat. Inadequate coolant risks thermal injury to the pulp, which can lead to post-operative sensitivity or irreversible pulpitis.
- Replace diamond burs on schedule. A worn diamond bur forces you to apply more pressure, producing more heat and a rougher preparation margin. Track the number of preparations per bur and discard after five uses maximum.
- Match the grit or flute count to the step. Start coarse for bulk reduction, then move to fine for finishing. Skipping grit steps leaves a rough surface that compromises impression detail or bonding adhesion.
- Clean burs after each use. Diamond coatings clog with debris and calcified tissue; carbide flutes can pack with composite resin. Proper cleaning extends usable life by 2-3x. See how to clean diamond burs for detailed protocols.
- Inspect burs before each use. Check for bent shanks, missing diamond particles, or chipped carbide flutes. A damaged bur produces unpredictable cuts and risks fracturing inside the handpiece.
Cost Considerations
Diamond burs are generally less expensive per unit, but their shorter functional lifespan means higher replacement frequency. A single diamond bur typically costs between $1.50 and $4.00 depending on shape and quality, but must be replaced every five preparations. Carbide burs cost more upfront, often $5.00 to $12.00 per bur, but last much longer and can sometimes be professionally resharpened, extending their useful life further.
For high-volume practices, tracking per-procedure bur cost helps identify the most economical approach for each procedure type. Many clinics find that maintaining a mix of quality diamond and carbide burs, rather than defaulting to one type exclusively, produces the best balance between clinical results and supply costs.
Frequently Asked Questions
Can you use carbide burs on zirconia?
No. Zirconia has a Vickers hardness of roughly 1,200 HV, which exceeds the effective cutting range of tungsten carbide blades. A carbide bur pressed against zirconia will dull almost immediately, producing heat and vibration without meaningful material removal. Always use a fine-grit diamond bur with continuous water spray when adjusting zirconia restorations chairside. Diamond abrasion is the only practical method for grinding this material in a clinical setting.
How many times can you reuse a diamond bur?
Most manufacturers recommend replacing an electroplated diamond bur after approximately five crown preparations. After that point, enough diamond particles have been lost or flattened that cutting efficiency drops noticeably. You end up pressing harder to compensate, which generates excess heat and rougher margins. Track your usage per bur, and when you notice the bur sliding rather than biting, discard it. Proper cleaning between uses helps maintain cutting performance throughout the bur's functional life.
Which is better for crown prep: diamond or carbide?
Diamond burs are the preferred instrument for crown preparation. The abrasive grinding action handles enamel reduction and depth-orientation grooves more efficiently than carbide blades, especially when working through existing porcelain or ceramic restorations. A typical crown prep sequence starts with a coarse-grit diamond for bulk reduction, moves to a medium-grit taper for axial walls, and finishes with a fine-grit diamond for margin refinement. Carbide burs may play a supporting role—some clinicians use a carbide finishing bur to smooth internal line angles—but diamond does the primary work.
Do carbide burs need water cooling?
Carbide burs generate less friction heat than diamond burs because their blade-shearing action produces clean chips rather than fine grinding dust. However, water cooling is still recommended for any procedure near the pulp, particularly at high RPMs. At low-speed settings in an RA handpiece, brief dry use is acceptable for tasks like caries excavation or composite trimming where heat buildup stays minimal. The general rule: if the procedure is close to the pulp or will last more than a few seconds at high speed, run the water. For more on bur mechanics, see our overview of dental bur types, uses, and techniques.
Summary
Diamond burs and carbide burs are not interchangeable – they are complementary tools designed for different clinical tasks. Diamond burs excel at grinding hard materials like enamel, zirconia, and porcelain in high-speed preparations. Carbide burs deliver cleaner blade cuts with less heat, making them ideal for cavity preparation, restoration removal, and composite finishing. Understanding the mechanical principles behind each type, and matching the right bur to each clinical step, improves both the quality of your work and patient comfort throughout the procedure.
Further Reading
